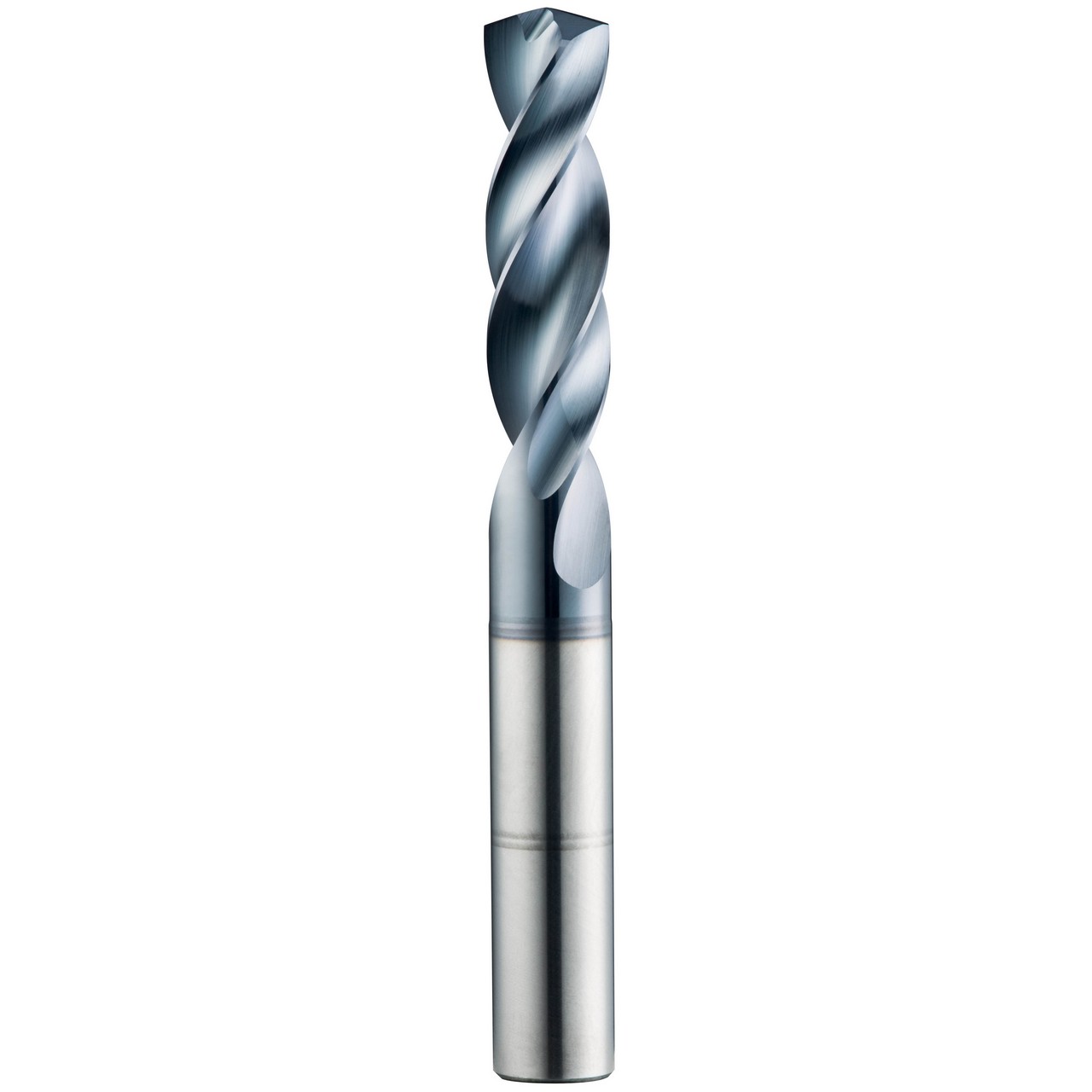

SGS 51272 | 5/64" Diameter x 1/8" Shank x 0.5" LOC x 2" OAL 2 Flute AlTiN Coated Screw Machine Length Drill Bit

$59.05
Brand:
SGS
Drill Point Angle:
145°
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
Finish/Coating:
TA
Flute Type:
Spiral
Cutting Direction:
RHC
SKU:
10229196
UPC:
691781512723
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Features:

  • Double margin design improves accuracy and surface finish along with increased strength for aggressive drilling
  • Specialized selfcentering notched point eliminates the need for spot drilling decreasing thrust and deflection
  • Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
  • Recommended for materials ≤ 56 HRC (≤ 577 BHN)

Product Specifications
Cutting Diameter (Inch)5/64"
Shank Diameter (Inch)1/8"
Length of Cut (Inch)0.5"
Overall Length (Inch)2"
Shank Length (Inch)1.25"
Cut of DirectionRight Hand
Flute TypeSpiral
Cleared Length (Inch)0.4375"
Helix Angle32 Degree
Point Angle145 Degree
CoatingAlTiN
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Drill Point Angle:
145°
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
Finish/Coating:
TA
Flute Type:
Spiral
Cutting Direction:
RHC
