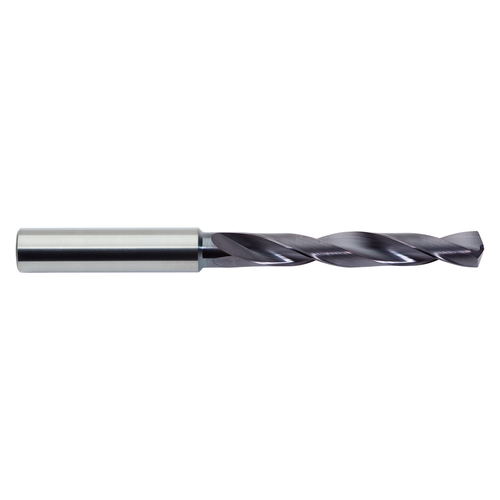

Features:
- Coolant through design promotes controlled and consistent operating temperatures improving coolant flow to the cut while maintaining strength
- Split point geometry for improved drill penetration and accuracy
- Controlled edge honing for longevity
- Negative corner position strengthens and protects
- Recommended for materials ≤ 60 HRc (≤ 654 Bhn)
Product Specifications
| Wire Diameter | #21 |
| Cutting Diameter (Inch) | 0.159" |
| Shank Diameter (Inch) | |
| Length of Cut (Inch) | 36" |
| Overall Length (Inch) | 74" |
| Shank Length (Inch) | 1.417" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Cleared Length (Inch) | 1.1417" |
| Helix Angle | 30 Degree |
| Point Angle | 140 Degree |
| Coating | AlTiN |
| Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Overall Length (Inch):
2-29/32"
Overall Length (Decimal Inch):
2.9130"
Overall Length (mm):
73.99mm
Drill Point Angle:
140°
Finish/Coating:
TA
