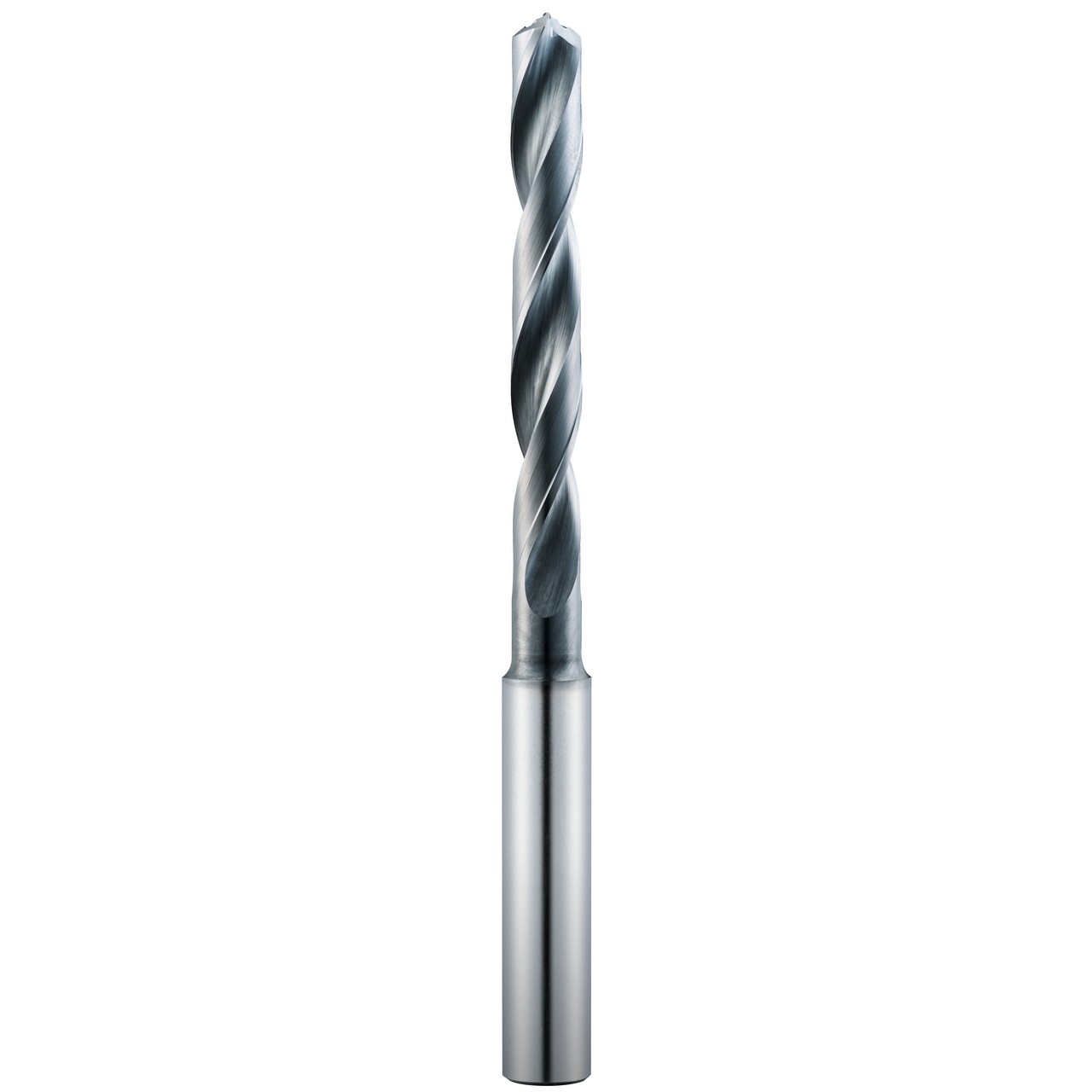

Features:
- Coolant through design improves coolant flow to extend tool life and aid in chip evacuation
- Eccentric 2-margin design reduces frictional heat and minimizes material adhesion to the margins without weakening the drill
- Computer controlled edge honing protects against chip damage
- High-performance point design stabilizes on contact for exceptional hole size and cylindricity allowing for low thrust force and extended tool life
- SGS Ti-NAMITE -A coating provides exceptional wear and erosion resistance when drilling heat resisting alloys like Inconel, Stainless Steel, and Titanium Alloys
- Recommended for materials ≤ 50HRc (475 Bhn)
Product Specifications
| Cutting Diameter (Inch) | 7/16" |
| Shank Diameter (Inch) | 1/2" |
| Length of Cut (Inch) | 71" |
| Overall Length (Inch) | 118" |
| Shank Length (Inch) | 1.7717" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Cleared Length (Inch) | 2.2047" |
| Helix Angle | 30 Degree |
| Point Angle | 135 Degree |
| Coating | AlTiN |
| Number of Flutes | 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Drill Point Angle:
135°
Overall Length (Inch):
4-41/64"
Overall Length (Decimal Inch):
4.6457"
Overall Length (mm):
118mm
Finish/Coating:
TA
Flute Type:
Spiral
Cutting Direction:
RHC
