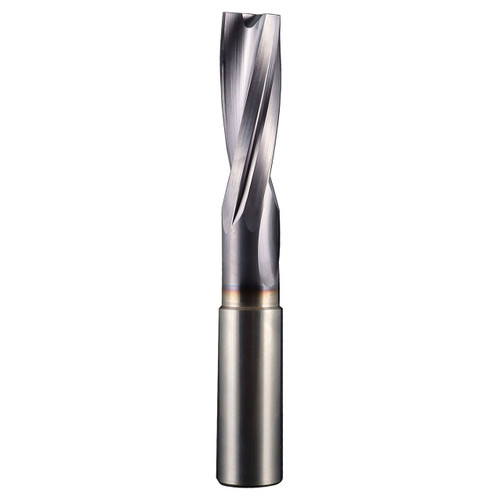

Features:
- 4-margin design improves accuracy and surface finish along with increased strength for aggressive drilling
- Specialized self-centering notched point eliminates the need for spot drilling decreasing thrust and deflection
- Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
- Recommended for materials ≤ 56 HRc (≤ 577 Bhn)
Product Specifications
| Manufacturer Part Number | 58810 |
| Cutting Diameter (Decimal Inch) | 0.161" |
| Cutting Diameter (mm) | 4.09mm |
| Cutting Diameter (Wire) | #20 |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Flute Length (Decimal Inch) | 0.709" |
| Flute Length (mm) | 18.00mm |
| Usable Length (Decimal Inch) | 0.522" |
| Usable Length (mm) | 13.27mm |
| Overall Length (Decimal Inch) | 2.362" |
| Overall Length (mm) | 60.00mm |
| Shank Length (Decimal Inch) | 1.339" |
| Shank Length (mm) | 34.00mm |
| Shank Diameter Tolerance | h6 |
| Point Angle (Degree) | 180 Degree |
| Flute Type | Spiral |
| Number of Margins | 4 |
| Number of Flutes | 2 |
| Reach (xD) | 3xD |
| Center Cutting | No |
| Double Margins | Yes |
| High Performance | Yes |
| Self Centering | Yes |
| Coating | TX (Ti-NAMITE-X) |
| Product Type | Flat Bottom Drill |
