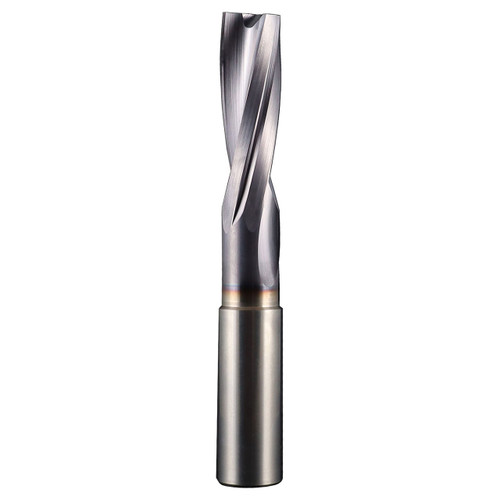

SGS 58893 | 9/32" Drill Size x 0.315" Shank x 1.811" Flute Length x 1.445" Usable Length x 3.937" OAL x 180 Degree Point Angle 2 Flute TX (Ti-NAMITE-X) Coated Carbide Flat Bottom Drill

SGS 58893 | 9/32" Drill Size x 0.315" Shank x 1.811" Flute Length x 1.445" Usable Length x 3.937" OAL x 180 Degree Point Angle 2 Flute TX (Ti-NAMITE-X) Coated Carbide Flat Bottom Drill

SKU: 10234661 Weight: 1.23 LBS Minimum Purchase: 1 unit
$214.59
Shipping: Calculated at Checkout

About This Item

Features:

  • 4-margin design improves accuracy and surface finish along with increased strength for aggressive drilling
  • Specialized self-centering notched point eliminates the need for spot drilling decreasing thrust and deflection
  • Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
  • Recommended for materials โ‰ค 56 HRc (โ‰คย 577 Bhn)

Product Specifications
Manufacturer Part Number58893
Size9/32"
Cutting Diameter (Inch)9/32"
Cutting Diameter (Decimal Inch)0.281"
Cutting Diameter (mm)7.14mm
Shank Diameter (Decimal Inch)0.315"
Shank Diameter (mm)8.00mm
Flute Length (Decimal Inch)1.811"
Flute Length (mm)46.00mm
Usable Length (Decimal Inch)1.445"
Usable Length (mm)36.71mm
Overall Length (Decimal Inch)3.937"
Overall Length (mm)100.00mm
Shank Length (Decimal Inch)1.912"
Shank Length (mm)48.57mm
Shank Diameter Toleranceh6
Point Angle (Degree)180 Degree
Flute TypeSpiral
Number of Margins4
Number of Flutes2
Reach (xD)5xD
Center CuttingNo
Double MarginsYes
High PerformanceYes
Self CenteringYes
CoatingTX (Ti-NAMITE-X)
Product TypeFlat Bottom Drill
