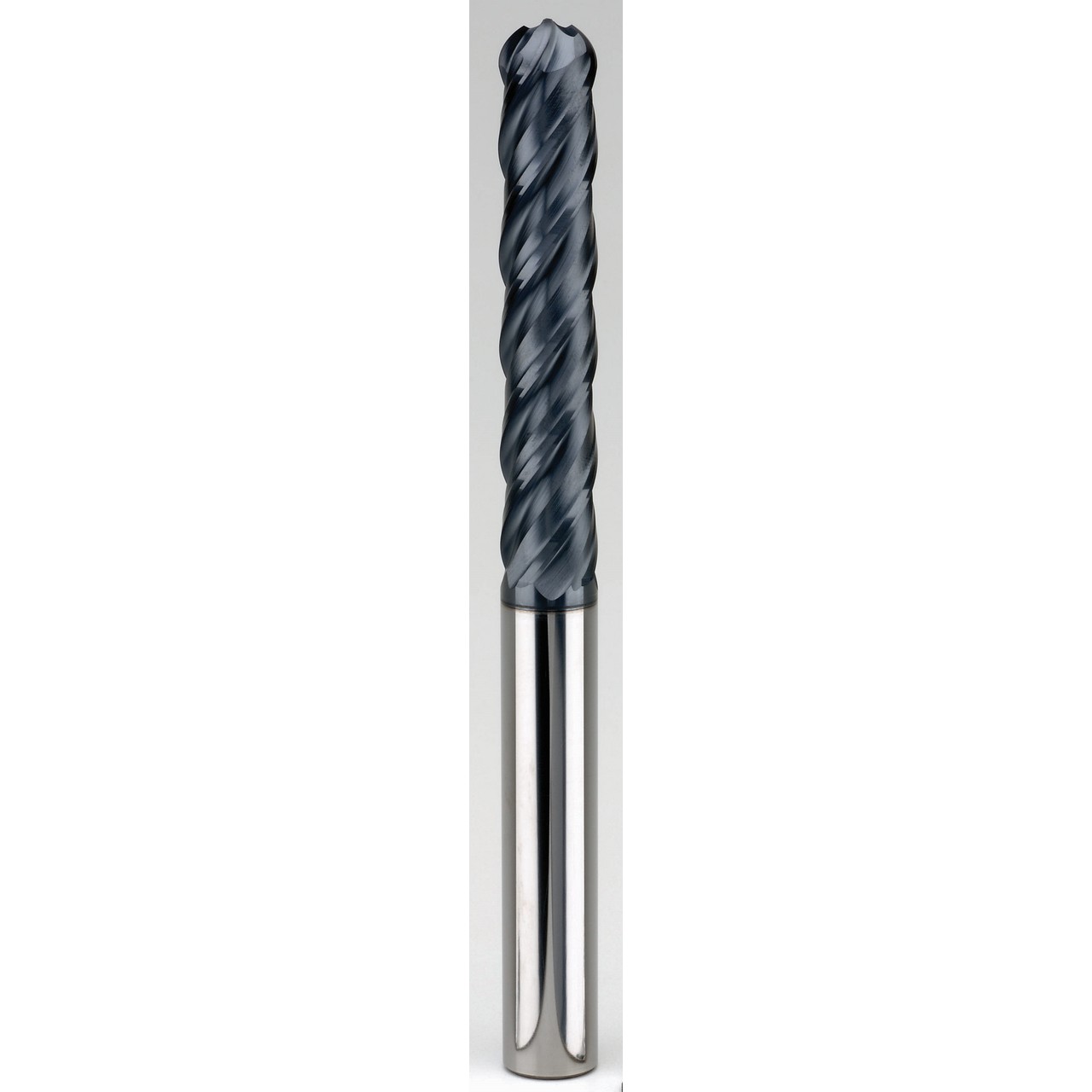

Features:
- Variable pitch allows for improved chatter suppression along with improved surface finish and enhanced tool life
- Raised land and increased core diameter designed to enhance tool life and decrease tool deflection
- Ball nose design ideal for finishing operations in complex workpieces
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (Inch) | 1.000" |
| Shank Diameter (Inch) | 1.000" |
| Length of Cut (Inch) | 2.250" |
| Overall Length (Inch) | 5.000" |
| Shank Length (Inch) | 2.750" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Helix Angle | 38 Degree |
| Coating | TX |
| Number of Flutes | 4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
2-1/4"
Length of Cut (Decimal Inch):
2.2500"
Length of Cut (mm):
57.15mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.4mm
Finish/Coating:
TX
Cutting Direction:
RHC
Helix Angle (Degree):
38 Degree
