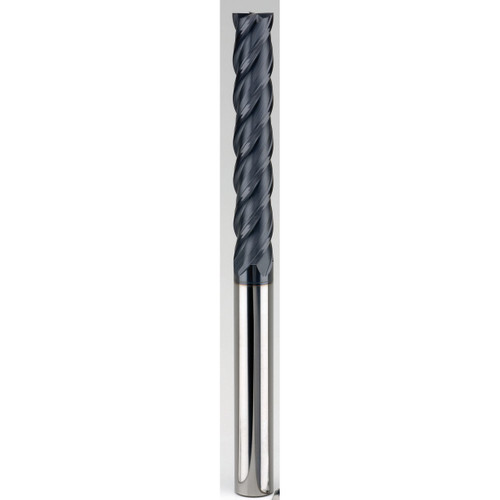

SGS 70555 | 8.0mm Diameter x 8.0mm Shank x 25.0mm LOC x 75.0mm OAL 4 Flute TX Coated Square End Mill

$37.66
Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
63/64"
Length of Cut (Decimal Inch):
0.9843"
Length of Cut (mm):
25mm
Finish/Coating:
TX
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8mm
Overall Length (Inch):
2-61/64"
Overall Length (Decimal Inch):
2.9528"
Overall Length (mm):
75mm
Helix Angle:
38 Degree
Cutting Direction:
RHC
SKU:
25200976
Weight:
0.12 LBS
Shipping:
Calculated at Checkout

Features:

  • Variable pitch allows for improved chatter suppression along with improved surface finish and enhanced tool life
  • Raised land and increased core diameter designed to enhance tool life and decrease tool deflection
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (mm)8.0mm
Shank Diameter (mm)8.0mm
Length of Cut (mm)25.0mm
Overall Length (mm)75.0mm
Shank Length (mm)49.9mm
Cut of DirectionRHC
Flute TypeSpiral
Helix Angle38 Degree
CoatingTX
Number of Flutes4
