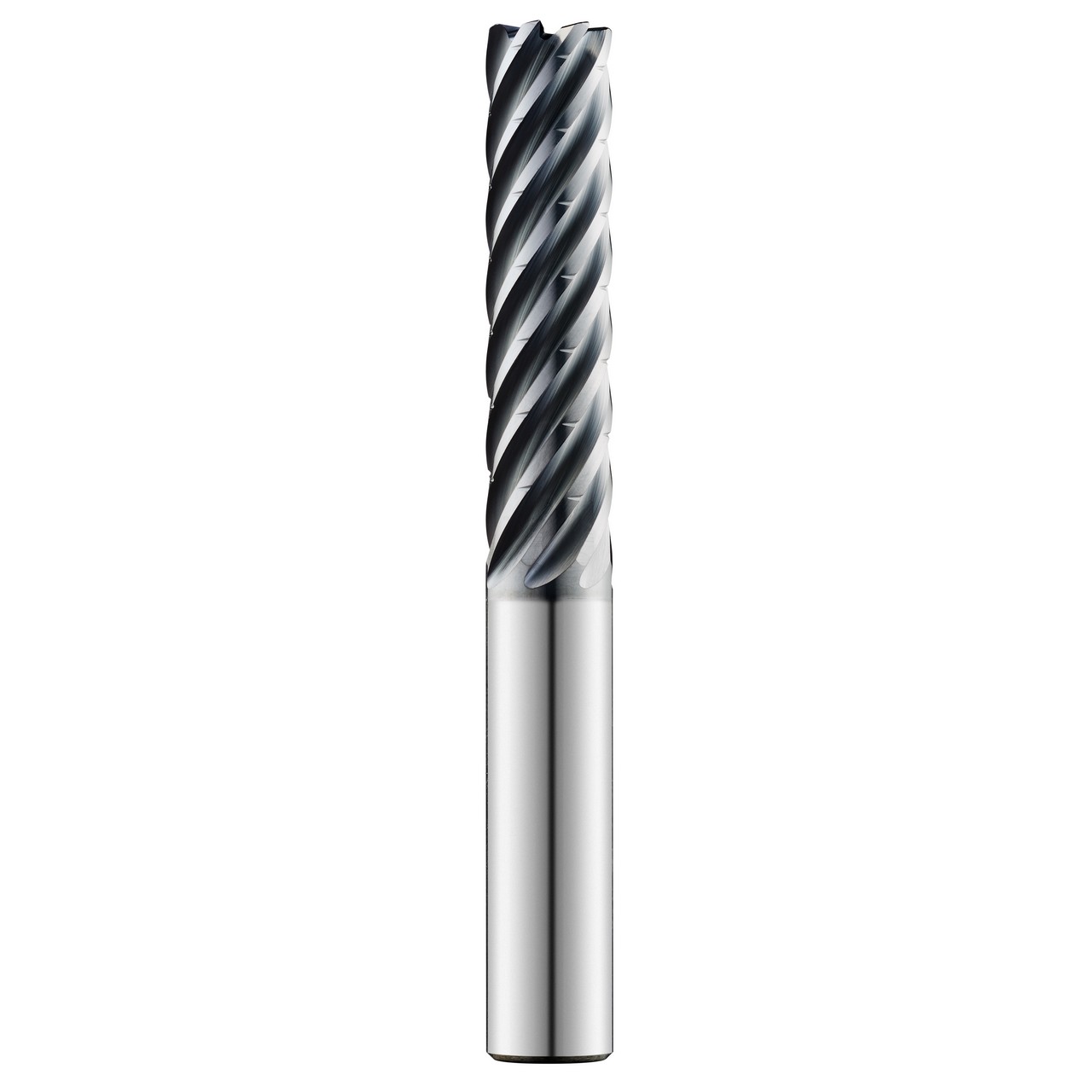

SGS 74390 | 8.0mm Diameter x 8.0mm Shank x 32.0mm LOC x 85.0mm OAL 7 Flute AlTiN Coated Corner Radius End Mill

$61.90
Brand:
SGS
Number of Flutes:
7
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0390"
Corner Radius (mm):
0.99mm
Length of Cut (Inch):
1-17/64"
Length of Cut (Decimal Inch):
1.2598"
Length of Cut (mm):
32mm
Finish/Coating:
TA
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8mm
Overall Length (Inch):
3-11/32"
Overall Length (Decimal Inch):
3.3465"
Overall Length (mm):
85mm
Cutting Direction:
RHC
SKU:
25201124
Weight:
0.12 LBS
Shipping:
Calculated at Checkout

Features:

  • Specializes in deep axial trochoidal and high-speed milling applications
  • Optimized core improves rigidity, chip flow and reduces deflection
  • Chip Breaker design breaks up chips from the long flute length allowing for better chip flow and evacuation in deep pocketing operations
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (mm)8.0mm
Shank Diameter (mm)8.0mm
Length of Cut (mm)32.0mm
Overall Length (mm)85.0mm
Cut of DirectionRHC
Flute TypeSpiral
Cleared Length (mm)32 mm
Corner Radius (mm)1 mm
Helix Angle37 Degree
CoatingAlTiN
Number of Flutes7
