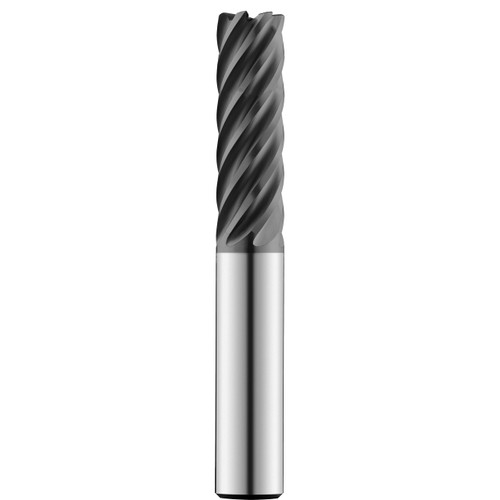

SGS 77154 | 3/8" Diameter x 3/8" Shank x 1-1/8" LOC x 3-1/4" OAL 7 Flute AlTiN Coated Corner Radius End Mill

$66.68
Brand:
SGS
Number of Flutes:
7
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0150"
Corner Radius (mm):
0.38mm
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Finish/Coating:
TA
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
3-1/4"
Overall Length (Decimal Inch):
3.2500"
Overall Length (mm):
82.55mm
Cutting Direction:
RHC
SKU:
25201388
Weight:
0.16 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)3/8"
Shank Diameter (Inch)3/8"
Length of Cut (Inch)1-1/8"
Overall Length (Inch)3-1/4"
Cut of DirectionRight Hand
Flute TypeSpiral
Cleared Length (Inch)1.125"
Corner Radius (Inch)0.015"
Helix Angle37 Degree
CoatingAlTiN
Number of Flutes7

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
7
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0150"
Corner Radius (mm):
0.38mm
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Finish/Coating:
TA
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
3-1/4"
Overall Length (Decimal Inch):
3.2500"
Overall Length (mm):
82.55mm
Cutting Direction:
RHC
