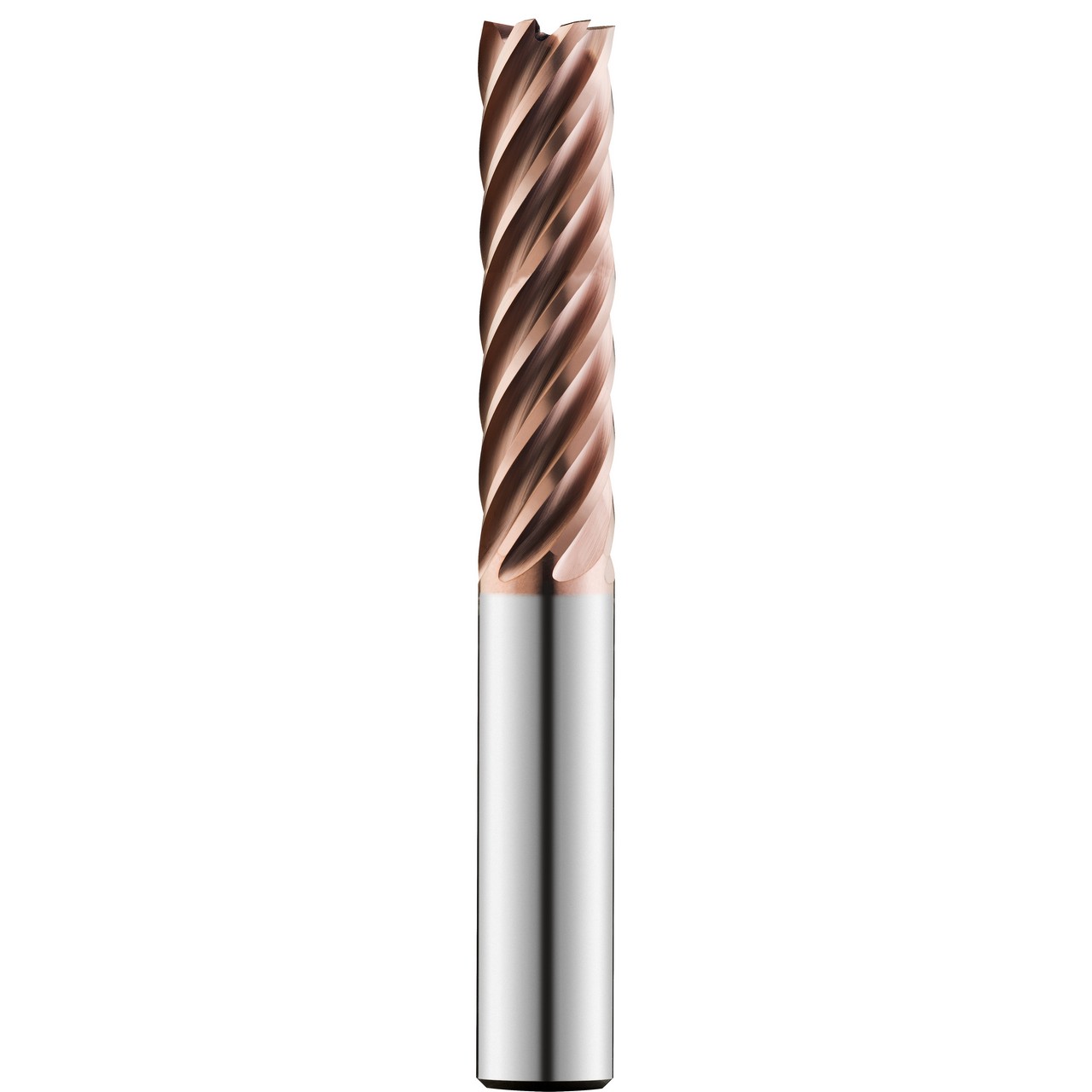

SGS 77221 | 5/8" Diameter x 5/8" Shank x 1-7/8" LOC x 4" OAL 7 Flute TM Coated Square End Mill

$176.69
Brand:
SGS
Number of Flutes:
7
Length of Cut (Inch):
1-7/8"
Length of Cut (Decimal Inch):
1.8750"
Length of Cut (mm):
47.63mm
Finish/Coating:
TM
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Helix Angle:
37 Degree
Cutting Direction:
RHC
SKU:
25201455
UPC:
691781772219
Weight:
0.53 LBS
Shipping:
Free Shipping

Features:

  • Specializes in deep axial trochoidal and high-speed milling applications
  • Optimized core improves rigidity, chip flow and reduces deflection
  • Chip Breaker design breaks up chips from the long flute length allowing for better chip flow and evacuation in deep pocketing operations
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (Inch)5/8"
Shank Diameter (Inch)5/8"
Length of Cut (Inch)1-7/8"
Overall Length (Inch)4"
Cut of DirectionRight Hand
Flute TypeSpiral
Cleared Length (Inch)1.875"
Helix Angle37 Degree
CoatingTM
Number of Flutes7
