Features:
- Specializes in deep axial trochoidal and high-speed milling applications
- Optimized core improves rigidity, chip flow and reduces deflection
- Chip Breaker design breaks up chips from the long flute length allowing for better chip flow and evacuation in deep pocketing operations
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)

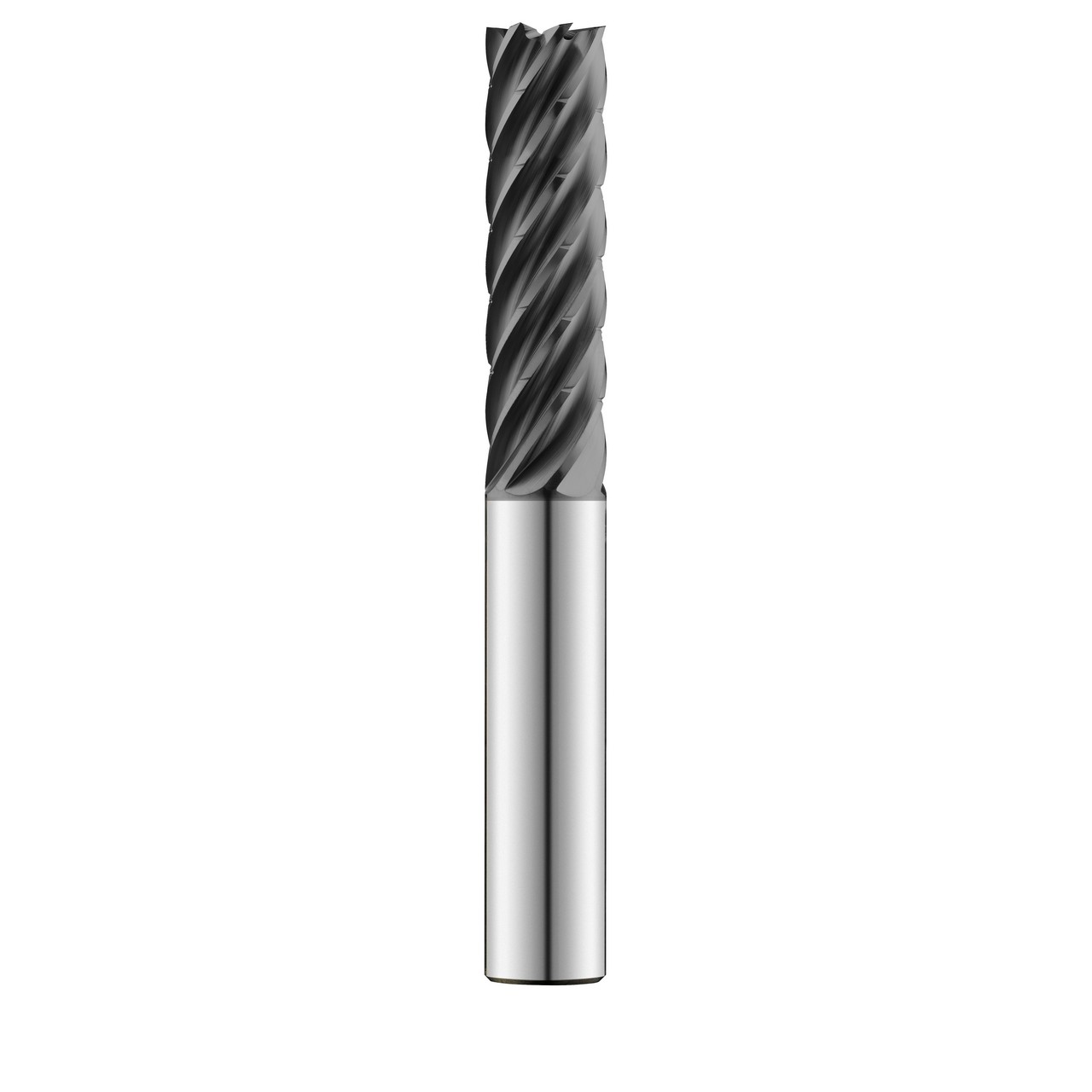

Product Specifications
| Cutting Diameter (Inch) | 3/4" |
| Shank Diameter (Inch) | 3/4" |
| Length of Cut (Inch) | 1-7/8" |
| Overall Length (Inch) | 4" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Cleared Length (Inch) | 1.875" |
| Helix Angle | 37 Degree |
| Coating | AlTiN |
| Number of Flutes | 7 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
7
Length of Cut (Inch):
1-7/8"
Length of Cut (Decimal Inch):
1.8750"
Length of Cut (mm):
47.63mm
Finish/Coating:
TA
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Helix Angle:
37 Degree
Cutting Direction:
RHC
