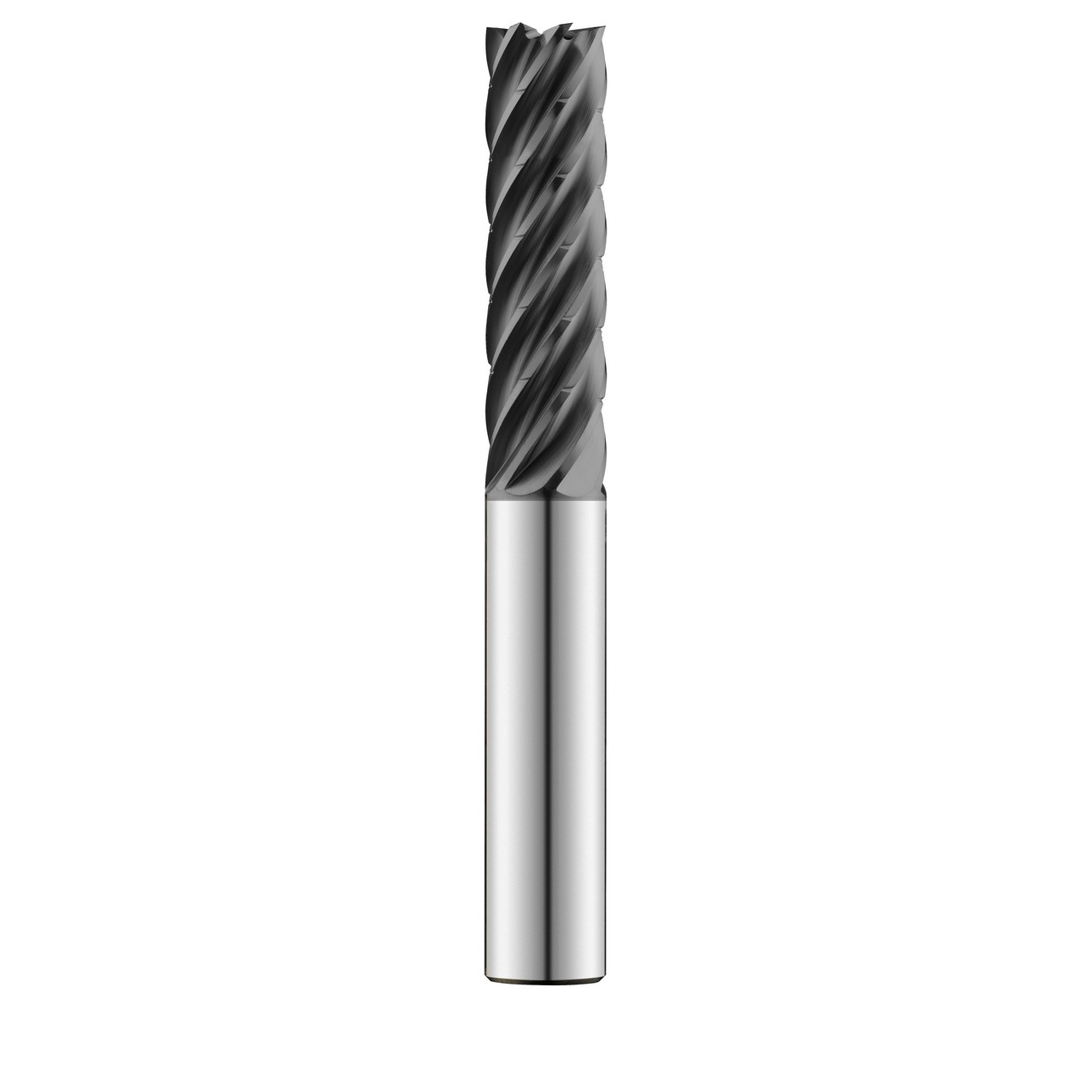

SGS 77262 | 3/4" Diameter x 3/4" Shank x 2-1/4" LOC x 4-1/2" OAL 7 Flute AlTiN Coated Square End Mill

$268.93
Brand:
SGS
Number of Flutes:
7
Length of Cut (Inch):
2-1/4"
Length of Cut (Decimal Inch):
2.2500"
Length of Cut (mm):
57.15mm
Finish/Coating:
TA
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
4-1/2"
Overall Length (Decimal Inch):
4.5000"
Overall Length (mm):
114.3mm
Helix Angle:
37 Degree
Cutting Direction:
RHC
SKU:
25201496
UPC:
691781772622
Weight:
0.86 LBS
Shipping:
Free Shipping

Features:

  • Specializes in deep axial trochoidal and high-speed milling applications
  • Optimized core improves rigidity, chip flow and reduces deflection
  • Chip Breaker design breaks up chips from the long flute length allowing for better chip flow and evacuation in deep pocketing operations
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (Inch)3/4"
Shank Diameter (Inch)3/4"
Length of Cut (Inch)2-1/4"
Overall Length (Inch)4-1/2"
Cut of DirectionRight Hand
Flute TypeSpiral
Cleared Length (Inch)2.25"
Helix Angle37 Degree
CoatingAlTiN
Number of Flutes7
