Features:

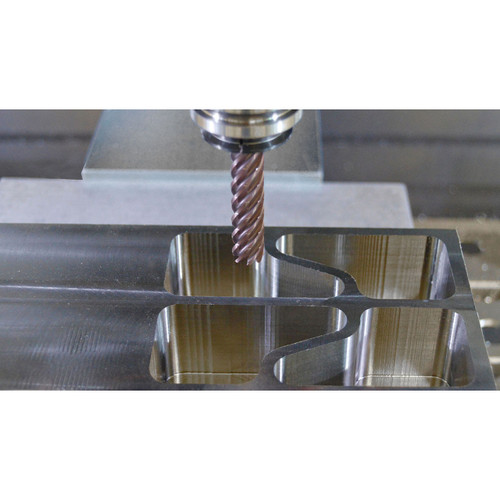

- Specializes in deep axial trochoidal and high-speed milling applications
- Optimized core improves rigidity, chip flow and reduces deflection
Product Specifications
| Manufacturer Part Number | 77352 |
| Cutting Diameter (Inch) | 1/2" |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Cutting Diameter (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (Decimal Inch) | 1.500" |
| Length of Cut (mm) | 38.10mm |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.500" |
| Overall Length (mm) | 88.90mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 7 |
| Center Cutting | No |
| Chip Breaker | No |
| High Performance | Yes |
| Coating | AlTiN (Ti-NAMITE-A) |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.70mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.10mm
Finish/Coating:
AlTiN (Ti-NAMITE-A)
Number of Flutes:
7
