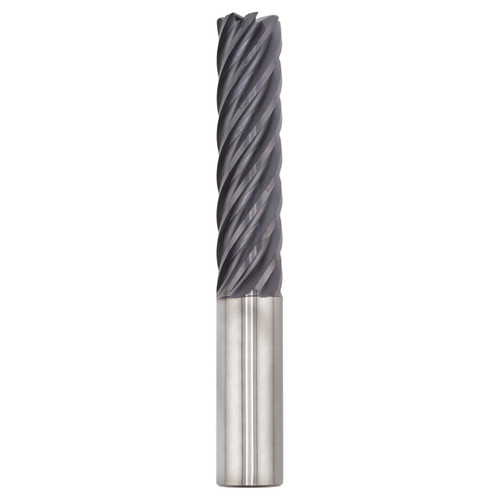

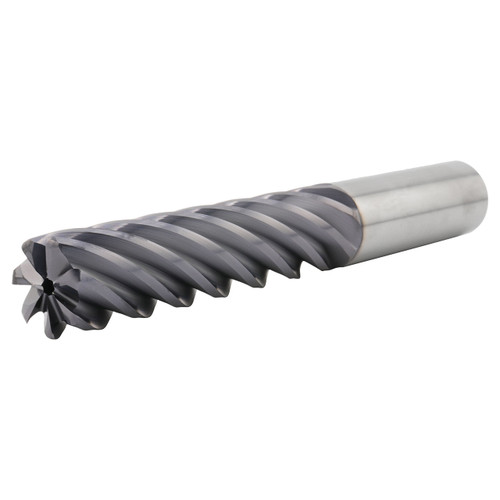

Features:
| Manufacturer Part Number | 77452 |
| Cutting Diameter (Inch) | 3/4" |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Inch) | 3" |
| Length of Cut (Decimal Inch) | 3.000" |
| Length of Cut (mm) | 76.20mm |
| Overall Length (Inch) | 5-1/4" |
| Overall Length (Decimal Inch) | 5.250" |
| Overall Length (mm) | 133.35mm |
| Corner Radius (Decimal Inch) | 0.060" |
| Corner Radius (mm) | 1.52mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 7 |
| Center Cutting | No |
| Chip Breaker | No |
| High Performance | Yes |
| Coating | AlTiN (Ti-NAMITE-A) |
| Product Type | Corner Radius End Mill |
