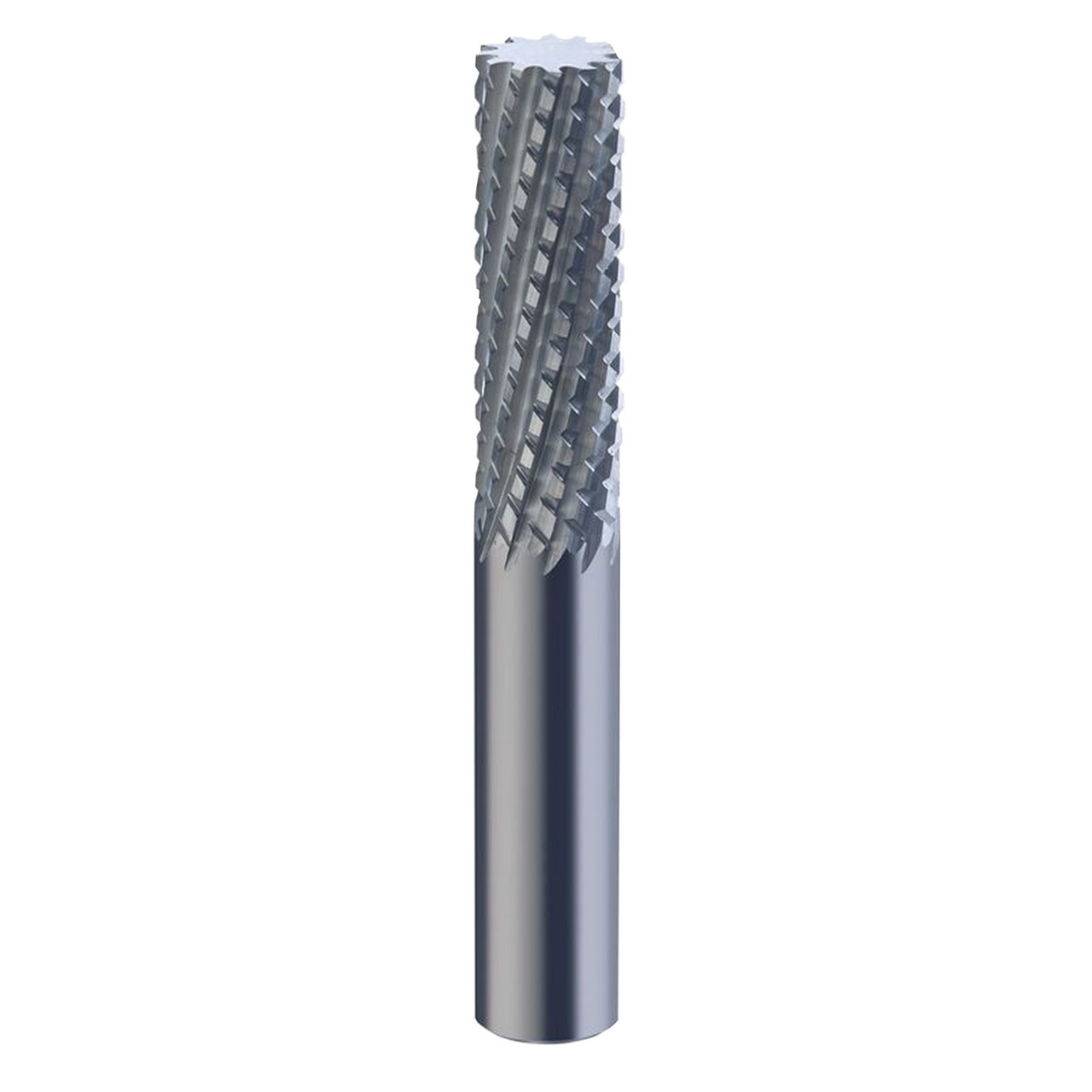

SGS 82966 | 6.0mm Diameter x 6.0mm Shank x 25.0mm LOC x 63.0mm OAL 8 Flute Uncoated Diamond Pattern Router Bit

$40.43
Brand:
SGS
Cutting Diameter (Inch):
15/64"
Cutting Diameter (Decimal Inch):
0.2362"
Cutting Diameter (mm):
6.00mm
Length of Cut (Inch):
63/64"
Length of Cut (Decimal Inch):
0.9843"
Length of Cut (mm):
25mm
Shank Diameter (Inch):
1-1/2"
Shank Diameter (Decimal Inch):
1.4960"
Shank Diameter (mm):
38mm
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63mm
Finish/Coating:
UN
SKU:
25201578
UPC:
691781829661
Weight:
0.06 LBS
Shipping:
Calculated at Checkout

Features:

  • Multi-flute design and positive geometry to shear with minimal pressure and delamination
  • Unique clearance grind minimizes contact between tool diameter and workpiece eliminating friction
  • Left hand flutes engineered to control the fibers within CFRP, preventing excessive fiber breakout
  • Excels at trimming and profiling difficult and abrasive fiber filled plastics

Product Specifications
Cutting Diameter (mm)6.0mm
Shank Diameter (mm)6.0mm
Length of Cut (mm)25.0mm
Overall Length (mm)63.0mm
Shank Length (mm)38.0mm
Cut of DirectionRHC
Flute TypeSpiral
Helix Angle15 Degree
CoatingUncoated
Number of Flutes8

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Cutting Diameter (Inch):
15/64"
Cutting Diameter (Decimal Inch):
0.2362"
Cutting Diameter (mm):
6.00mm
Length of Cut (Inch):
63/64"
Length of Cut (Decimal Inch):
0.9843"
Length of Cut (mm):
25mm
Shank Diameter (Inch):
1-1/2"
Shank Diameter (Decimal Inch):
1.4960"
Shank Diameter (mm):
38mm
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63mm
Finish/Coating:
UN
