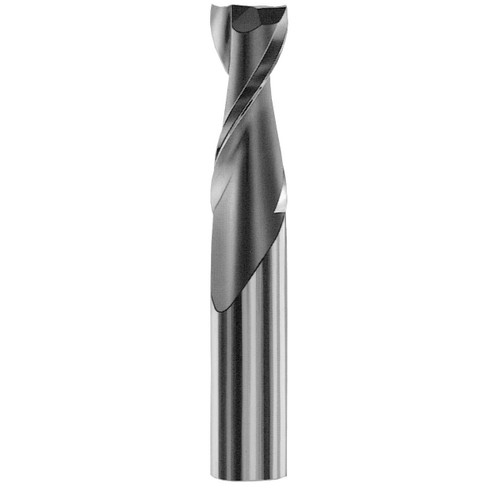

SGS 90101 | 3.0mm Diameter x 6.0mm Shank x 13.0mm LOC x 50.0mm OAL 2 Flute Uncoated Spiral Router Bit

$22.99
Brand:
SGS
Cutting Diameter (Inch):
1/8"
Cutting Diameter (Decimal Inch):
0.1181"
Cutting Diameter (mm):
3.00mm
Number of Flutes:
2
Flute Type:
Spiral
Cutting Direction:
Right Hand
Length of Cut (Inch):
33/64"
Length of Cut (Decimal Inch):
0.5118"
Length of Cut (mm):
13mm
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Overall Length (Inch):
1-31/32"
Overall Length (Decimal Inch):
1.9685"
Overall Length (mm):
50mm
End Type:
Square
SKU:
25201678
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (mm)3.0mm
Shank Diameter (mm)6.0mm
Length of Cut (mm)13.0mm
Overall Length (mm)50.0mm
Shank Length (mm)37.0mm
Cut of DirectionRHC
Flute TypeSpiral
Helix Angle35 Degree
CoatingUncoated
Number of Flutes2
