Skoda 310726 | Live Center Set

SKU: 50034003 Weight: 0.21 LBS Minimum Purchase: 1 unit
UPC:
$261.23 $224.66
(You save $36.57)
Shipping: Calculated at Checkout

About This Item

Features

CSN 243326
  • The rotating spindle is extended right through the tapered shank
  • Two specially designed adjustable needle-roller bearings carry all radial loads
  • A heavy duty ball thrust bearing takes all axial thrust
  • Complete protection of bearings from the ingress of coolant, dirt or swarf is provided by the built-in oil-seal, which also prevents loss of lubricant
Set contains:
  • Live center body
  • Drift key
  • Wooden case
  • Maximum weight of workpiece is independent of the individual point being used
  • 7 interchangeable points (60 degree point, bullnose point, small bullnose point, 60 degree centerless point, 90 degree centerless point, toothed point, 60 degree reverse point)

Product Specifications
Manufacturer Part Number310726
Product TypePoint

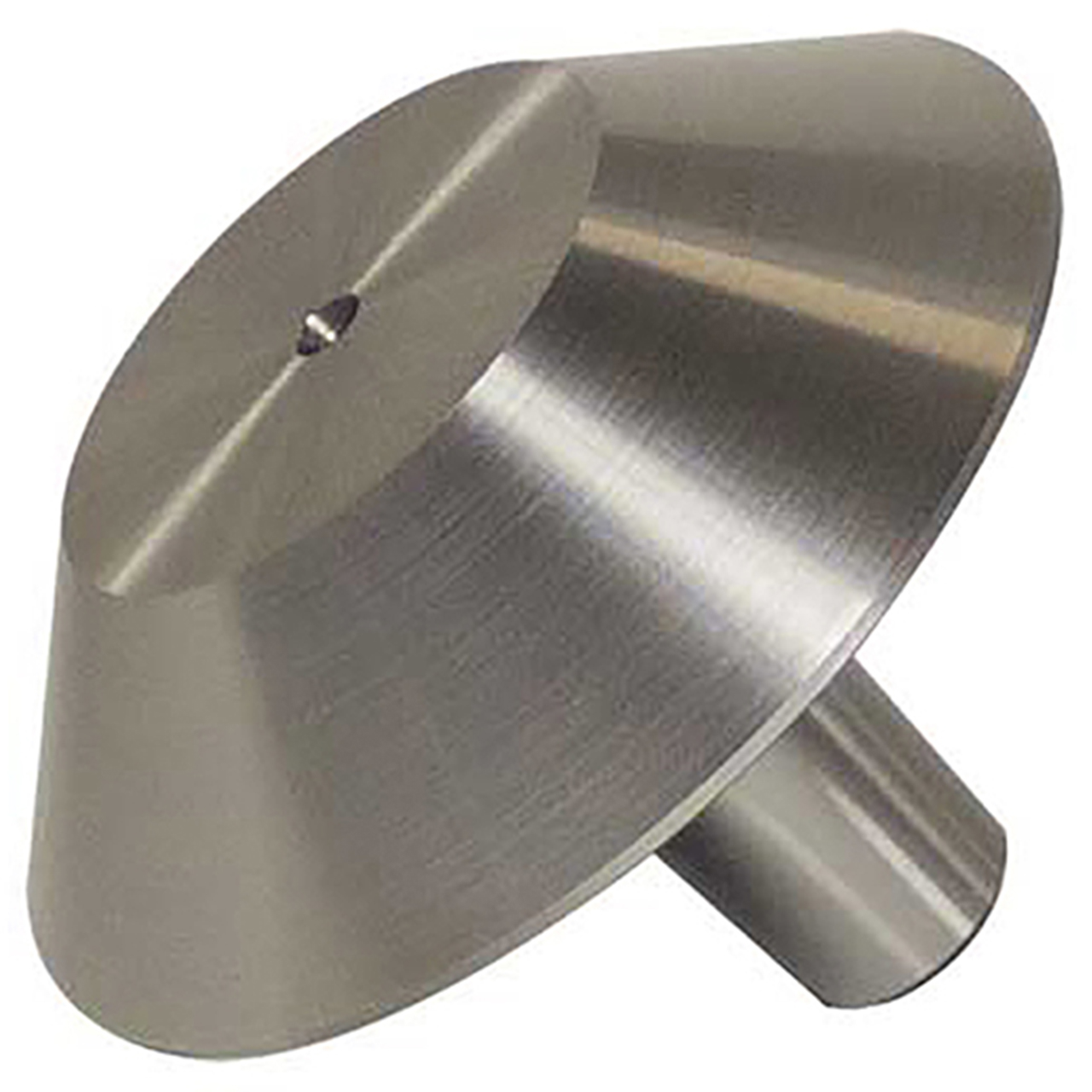

Point StyleBull Nose Point
For TaperMT3
Overall Length (Decimal Inch)1.771"
Point Diameter (Decimal Inch)1.417"
Tip Diameter (Decimal Inch)0.236"
Gauge Line Diameter (Decimal Inch)0.59"
Shank Length (Decimal Inch)0.984"
Product TypeLive Center Set
