Features

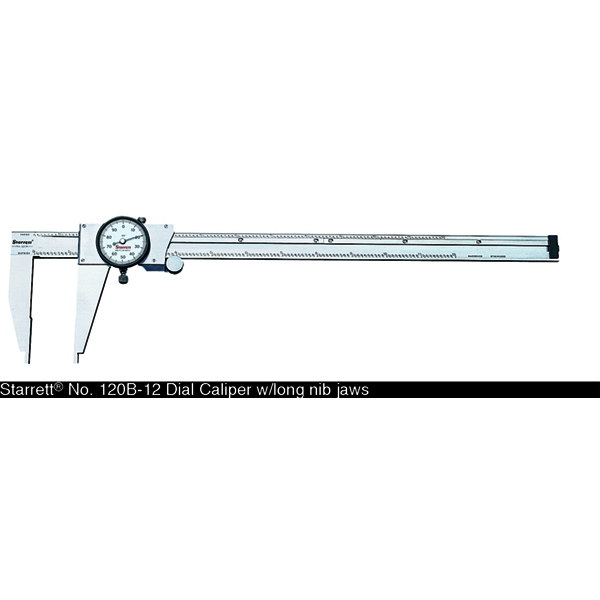

- Only American Made Dial Caliper
- Direct reading, reliable and accurate
- Sharp, clear dial graduations
- Sharp, black graduations on the satin finished bar
- Knife-edge contacts for both inside and outside measurements
- One hand use with the thumb-operated, fine adjustment roll
- Lock screw for dial bezel and Lock screw for holding sliding jaw in position
- Hardened stainless steel bar, measuring surfaces, rack, gears and depth rod
- Positive, split-gear anti-backlash control
- Strong inside and outside nibs
Product Specifications
| Range (in) | 0-12" |
| Graduations (in) | 0.0010" |
| Revolution Range (in) | 0.100" |
| Bar Graduations | .100" |
| Construction Material | Stainless Steel |
| Dial Color | White |
| Inside Jaw Depth (in) | .300" |
| Inside Jaw Depth (mm) | 8mm |
| Outside Jaw Depth (in) | 3" |
| Outside Jaw Depth (mm) | 75mm |
| Accuracy (in) | 0-6" (+/-.001") 6-12" (+/-.0015") |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Maximum Measurement (Inch):
12"
Dial Graduation (Inch):
0.0010"
Accuracy (Decimal Inch):
0-6 (+/-.001") 6-12" (+/-.0015")"
Jaw Length (Inch):
3"
Range Per Revolution (Decimal Inch):
0.1000"
Dial Color:
White
Material:
Stainless Steel
Ships:
From Manufacturer
