Features
- Once legs have been set to approximate size and joint locked, final adjustment is made by a few turns of the knurled adjusting nut
- Joint can be quickly and firmly locked by a partial turn of the large knurled disc
- Ruggedly constructed legs from highgrade steel and are well-shaped and nicely finished
- Spring washer under the disc maintains proper tension of legs when joint is loosened
- Transfer arm
- Transfer arm allows transfer measurements from places where it is necessary to move the legs after they have been set to size
- Fine-adjustment screw
- Adjusting screw permits close adjustment for fine measurements
- Locking joint
Product Specifications

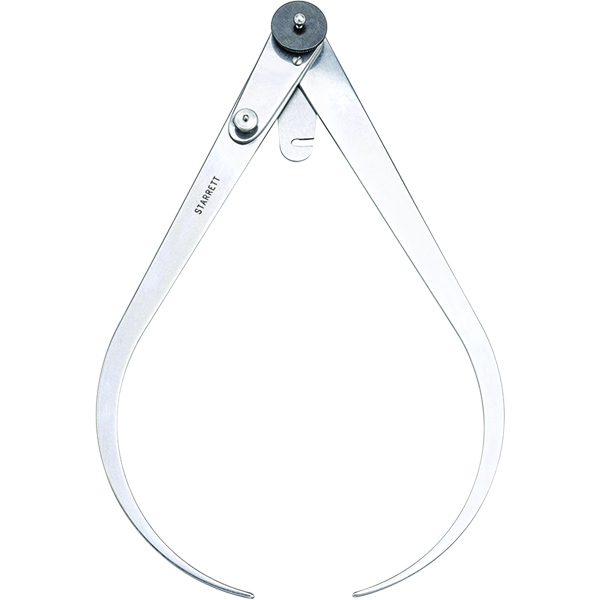

| Type | Outside |
| Size and Approximate Capacity (in) | 12" |
| Size and Approximate Capacity (mm) | 300mm |
| Joint Type | Lock Joint |
| Leg Style | Flat Leg |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Type:
Outside
Joint Type:
Lock Joint
Minimum Caliper Measurement (Inch):
0"
Minimum Caliper Measurement (Decimal Inch):
0.0000"
Minimum Caliper Measurement (mm):
0mm
Maximum Caliper Measurement (Inch):
12"
Maximum Caliper Measurement (Decimal Inch):
12.0000"
Maximum Caliper Measurement (mm):
300mm
Ships:
From Manufacturer
