Features

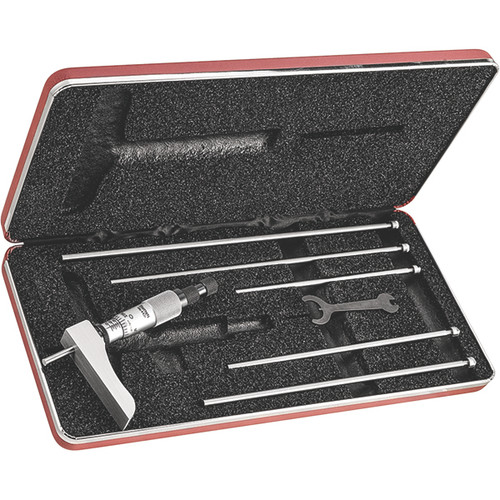

- The depths of holes, slots, shoulders and projections can be measured with these fine tools
- 2" (50mm) half base permits measuring depths of holes and slots close to shoulders and between obstructions
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Rods have individual length adjustment and are 5/32" (4mm) in diameter
- Ring-type knurled lock nut for quick and sure locking
Product Specifications
| Micrometer Type | Mechanical |
| Range (in) | 0-6" |
| Graduations (in) | .001" |
| Base Length (in) | 2" - Half Base |
| Lock Nut Type | Ring Type Knurled |
| Measuring Rods (qty) | 6 |
| Rod Diameter (in) | 5/32" |
| Thimble Type | Ratchet |
| Case Type | Padded Case |
| Accuracy (in) | Mic head +/-.0001"; Rods +/-.0002" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0000"
Maximum Measurement (Inch):
6"
Maximum Measurement (Decimal Inch):
6.0000"
Graduation (Inch):
0"
Graduation (Decimal Inch):
0.0010"
Base Length (Inch):
2 (Half Base)"
Base Length (Decimal Inch):
2.0000"
Base Length (mm):
50.80mm
No of External Rods:
6
Thimble Type:
Ratchet
Ships:
From Manufacturer
