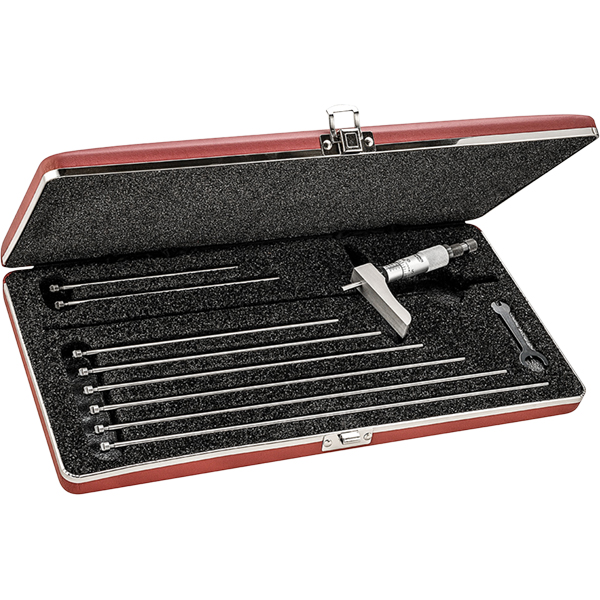

Starrett 52175 | 0"-9" Range Depth Micrometer 0.0010" Graduation 2" (Half Base) Base Length Ratchet Thimble

About This Item

Features

• The depths of holes, slots, shoulders and projections can be measured with these fine tools
• 2" (50mm) half base permits measuring depths of holes and slots close to shoulders and between obstructions
• Combination ratchet and speeder for uniform pressure and quicker adjustment
• Rods have individual length adjustment and are 5/32" (4mm) in diameter
• Ring-type knurled lock nut for quick and sure locking

Product Specifications

Micrometer Type	Mechanical
Range (in)	0-9"
Graduations (in)	.001"
Base Length (in)	2" - Half Base
Lock Nut Type	Ring Type Knurled
Measuring Rods (qty)	9
Rod Diameter (in)	5/32"
Thimble Type	Ratchet
Case Type	Padded Case
Accuracy (in)	Mic head +/-.0001"; Rods +/-.0002"
