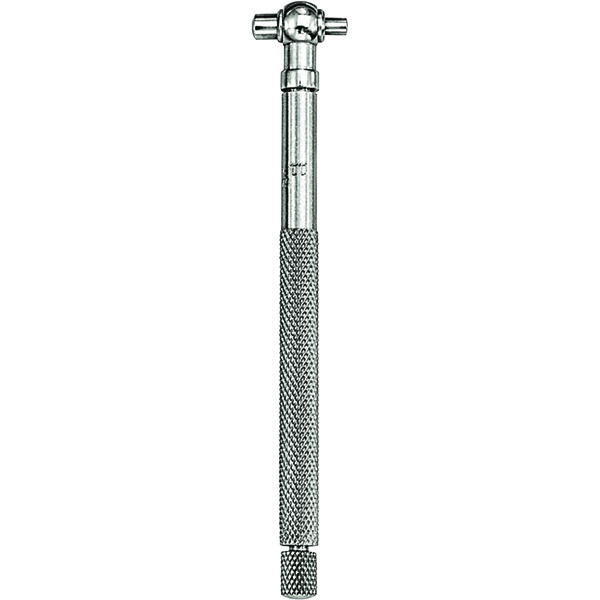

Starrett 579A | 5/16"-1/2" Range Telescoping Gage

$50.00
Ships:
From Manufacturer
Brand:
Starrett
Minimum Measurement (Inch):
5/16"
Minimum Measurement (Decimal Inch):
0.3125"
Minimum Measurement (mm):
8mm
Maximum Measurement (Inch):
1/2"
Maximum Measurement (Decimal inch):
0.5000"
Maximum Measurement (mm):
13mm
Handle Style:
Rigid
Material:
Steel
Finish/Coating:
Satin Chrome
Ships:
From Manufacturer
SKU:
30026912
UPC:
049659526103
Weight:
0.11 LBS
Shipping:
Calculated at Checkout
Features
  • Precision Ground Radius on each gage provides two-point contact for maximum accuracy
  • Greater range
  • Constant spring tension gives uniform contact pressure
  • Both plungers are easily locked at any desired setting
  • Handles can be individually ordered. Handles longer than 12" (300mm) are available on special order.
  • Handles are rigidly attached to the contact plungers and are automatically self-centering
  • Ends of both contacts are hardened and ground to a radius to allow proper clearance on the smallest hole the gage will enter
  • Two telescoping contacts
Product Specifications
Range (in) 5/16-1/2"
Range (mm) 8-13mm
Handle Length (in) 2-3/8"
Handle Length (mm) 60mm
