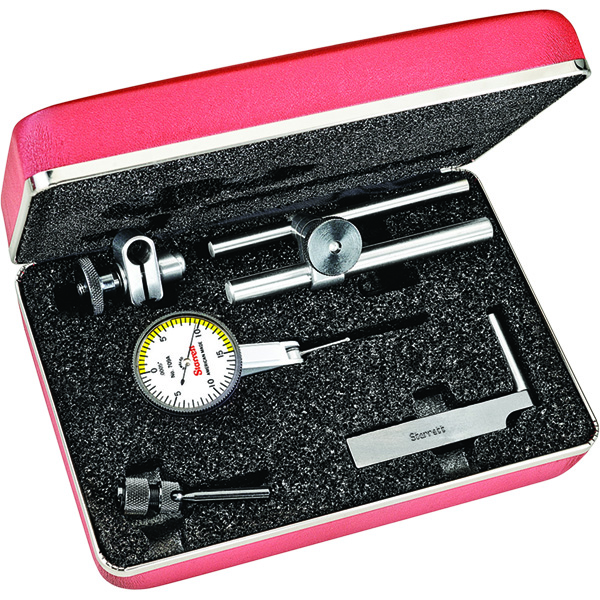

Starrett 709ALZ | 0"-3/64" Range Dial Test Indicator 0.0005" Graduation White Dial

$374.00
Ships:
From Manufacturer
Brand:
Starrett
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0000"
Maximum Measurement (Inch):
3/64"
Maximum Measurement (Decimal Inch):
0.0500"
Dial Graduation (Inch):
0"
Dial Graduation (Decimal Inch):
0.0005"
Dial Reading:
0-25-0
Dial Diameter (Inch):
1-3/8"
Dial Diameter (Decimal Inch):
1.3751"
Dial Color:
White
Ships:
From Manufacturer
SKU:
30025025
UPC:
049659658576
Weight:
0.11 LBS
Shipping:
Free Shipping
Starrett 709ALZ | 0"-3/64" Range Dial Test Indicator 0.0005" Graduation White Dial
Features
  • These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
  • Three dovetail positioning mounts work with existing test indicator accessories
  • Precision gear-driven design with smooth, jeweled movement
  • Contact point reverses automatically, always maintaining clockwise hand rotation
  • Contacts are frictionally adjustable and replaceable
  • Revolution count hand for easy reading
  • Meet or exceed ISO accuracy specification
  • Inch reading indicators are available with easy-to-read, shaded white, red, or black dials - millimeter reading indicators with yellow dials
  • Angled head for better reading position
  • Narrow body for inreach ability
  • Satin chrome finish for durability
  • Large 1-3/8" (35mm) dial diameter
  • Include long carbide contacts 1-23/64" (34mm)
Product Specifications
Range (in) .050"
Graduations (in) .0005"
Dial Reading 0-25-0
Attachments Without Attachments
Contact Point Ball Diameter (in) .078" (2mm)
Contact Point Length (in) 1-23/64"
Contact Point Length (mm) 34.4mm
Dial Color White
