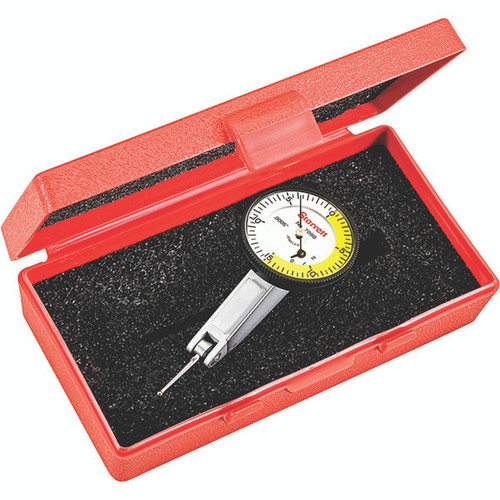

Starrett 64215 | 0"-1/16" Range Dial Test Indicator 0.0005" Graduation White Dial

About This Item

Features

• These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
• Three dovetail positioning mounts work with existing test indicator accessories
• Precision gear-driven design with smooth, jeweled movement
• Contact point reverses automatically, always maintaining clockwise hand rotation
• Contacts are frictionally adjustable and replaceable
• Revolution count hand for easy reading
• Meet or exceed ISO accuracy specification
• Inch reading indicators are available with easy-to-read, shaded white, red, or black dials - millimeter reading indicators with yellow dials
• Angled head for better reading position
• Narrow body for inreach ability
• Satin chrome finish for durability
• Large 1-3/8" (35mm) dial diameter
• Include long carbide contacts 13/16" (20mm)

Product Specifications

Range (in)	.060"
Graduations (in)	.0005"
Dial Reading	0-15-0
Attachments	Without Attachments
Contact Point Ball Diameter (in)	.078" (2mm)
Contact Point Length (in)	13/16"
Contact Point Length (mm)	20mm
Dial Color	White
