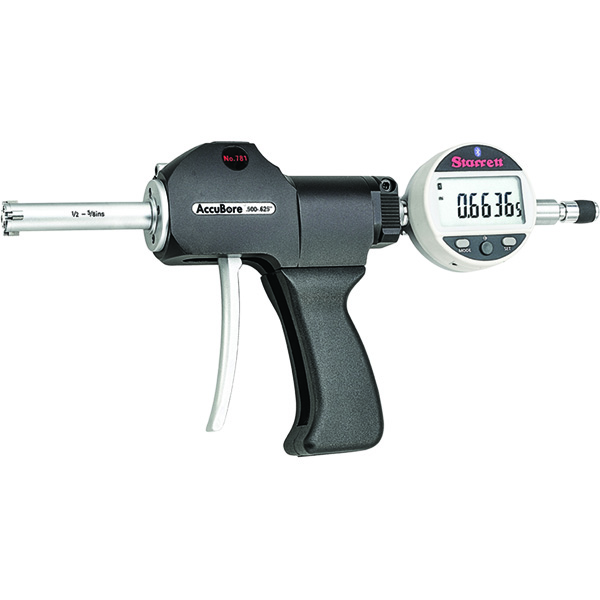

Starrett 781BXTZ-625 | 0.5000"-0.6250" Range Digital AccuBore Gage 0.0005" Resolution

$2,912.00
Ships:
From Manufacturer
Brand:
Starrett
Type:
AccuBore Gage
Minimum Measurement (Inch):
1/2"
Minimum Measurement (Decimal Inch):
0.5000"
Minimum Measurement (mm):
12.50mm
Maximum Measurement (Inch):
5/8"
Maximum Measurement (Decimal Inch):
0.6250"
Maximum Measurement (mm):
16mm
Gage Depth (Inch):
2-3/8"
Gage Depth (Decimal Inch):
2.3750"
Gage Depth (mm):
62mm
Resolution (Inch):
0"
Resolution (Decimal Inch):
0.0005"
Resolution (mm):
0.001mm
Ships:
From Manufacturer
SKU:
30025862
UPC:
049659730029
Weight:
0.11 LBS
Shipping:
Free Shipping
Features
  • Single-hand operation with right- and left-hand viewing flexibility
  • Large, easy-to-read digital display with integrated LEDs tolerances
  • Enhanced wear life with carbide-faced contacts - available from 1/2" to 8"
  • True alignment with mechanically-driven parallel anvils
  • Push button inch/metric conversion
  • Preset and preset recall
  • Hold, max/min and zeroing capabilities
  • Blind bore measurement is standard from .50" (12.7mm) and above
  • Bluetooth Output capability for Statistical Process Control (SPC) analysis
Product Specifications
Range (in) 1/2 to 5/8"
Range (mm) 12.5-16mm
Resolution (in) .00005"
Resolution (mm) 0.001mm
SPC Output SPC Output
Approximate Measuring Depth (in) 2 3/8"
Approximate Measuring Depth (mm) 62mm
Accuracy (in) .00015"
Accuracy (mm) .004mm
