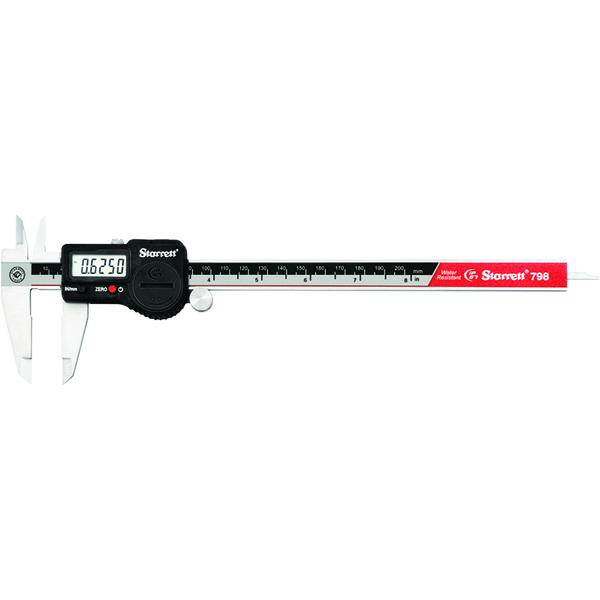

This durable caliper is constructed from hardened stainless steel and features IP67 rated protection against coolant, water, dirt, and dust. It offers a .0005" resolution and 0-8" range.
Features
- IP67 level of protection against coolant, water, dirt and dust
- Fine adjustment
- Hardened stainless steel measuring surfaces
- Large, easy-to-read, high-contrast LCD digital readout
- Induction type linear encoder system
- RS232 output
- Heavy-duty bar and slide
- Slide lock
- One 3-volt battery for over one year of normal usage
- In/mm conversion
- Zero at any position
- Auto-Off after 30 minutes
- Reactivation of display with no loss of position
- Works well with Starrett DataSure Wireless Data Collection Systems
Product Specifications
| Range (in) | 0-8" |
| Range (mm) | 0-200mm |
| Resolution (in) | .0005" |
| Resolution (mm) | 0.01mm |
| SPC Output | No |
| Construction Material | Stainless Steel |
| Display Type | LCD |
| Case Type | Plastic |
| Accuracy (in) | 0-8": (+/-.001") |
| Accuracy (mm) | 0 -100mm: (+/- 0.02mm) >100mm - 200mm: (+/- 0.03mm) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Minimum Measurement (Inch):
0
Minimum Measurement (mm):
0
Maximum Measurement (Inch):
8"
Maximum Measurement (mm):
200mm
Accuracy (Decimal Inch):
0-8 (+/-.001")"
Accuracy (mm):
0 -100mm (+/- 0.02mm) >100mm-200mm (+/- 0.03mm)
Resolution (Decimal Inch):
0.0005"
Resolution (mm):
0.01mm
Data Output:
None
Material:
Stainless Steel
Ships:
From Manufacturer
