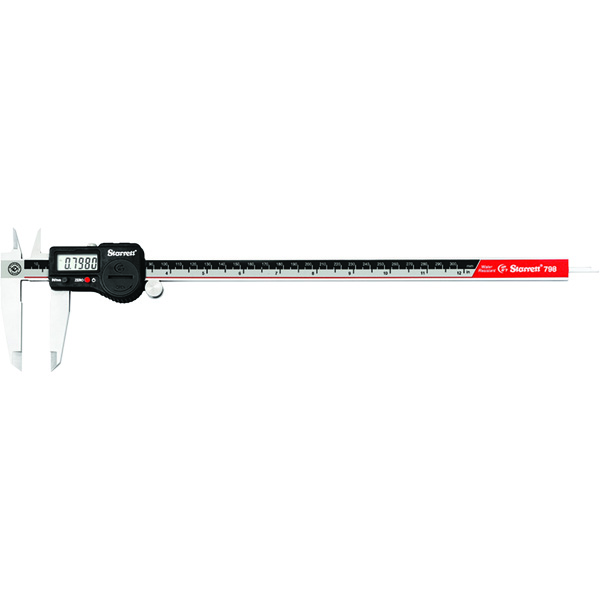

The Starrett 798B-12/300 electronic caliper includes SPC output, useful for sending data to a PC for collection purposes. It is IP67 rated for protection against coolant, water, dust and dirt.
The large, LCD digital readout is easy to read and features an auto-off feature after 30 minutes to preserve battery life.
Features
- IP67 level of protection against coolant, water, dirt and dust
- Fine adjustment
- Hardened stainless steel measuring surfaces
- Large, easy-to-read, high-contrast LCD digital readout
- Induction type linear encoder system
- RS232 output
- Heavy-duty bar and slide
- Slide lock
- One 3-volt battery for over one year of normal usage
- In/mm conversion
- Zero at any position
- Auto-Off after 30 minutes
- Reactivation of display with no loss of position
- Works well with Starrett DataSure Wireless Data Collection Systems
| Range (in) | 0-12" |
| Range (mm) | 0-300mm |
| Resolution (in) | .0005" |
| Resolution (mm) | 0.01mm |
| SPC Output | Yes |
| Construction Material | Stainless Steel |
| Display Type | LCD |
| Case Type | Plastic |
| Accuracy (in) | 0-12": (+/-.001") |
| Accuracy (mm) | 0 -100mm: (+/- 0.02mm) >100mm - 300mm: (+/- 0.03mm) |
