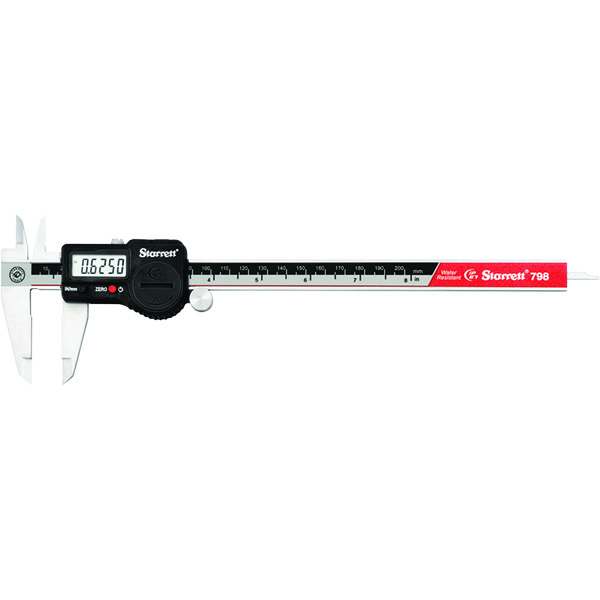

Machine shop environments can be harsh on measuring tools. Starrett's 798B-8/200 electronic caliper is IP67 rated to protect against damage from coolants, dust and dirt, or water.
SPC output allows data to be sent to a PC for collection purposes.
Features
- IP67 protection against coolants, water, chips, dust and dirt often found in machine shop environments
- Fine adjustment
- Hardened stainless steel measuring surfaces
- Large, easy-to-read, high-contrast LCD digital readout
- Induction type linear encoder system
- RS232 output
- Heavy-duty bar and slide
- Slide lock
- One 3-volt battery for over one year of normal usage
- In/mm conversion
- Zero at any position
- Auto-Off after 30 minutes
- Reactivation of display with no loss of position
- Works well with Starrett DataSure Wireless Data Collection Systems
| Range (in) | 0-8" |
| Range (mm) | 0-200mm |
| Resolution (in) | .0005" |
| Resolution (mm) | 0.01mm |
| SPC Output | Yes |
| Construction Material | Stainless Steel |
| Display Type | LCD |
| Case Type | Plastic |
| Accuracy (in) | 0-8": (+/-.001") |
| Accuracy (mm) | 0 -100mm: (+/- 0.02mm) >100mm - 200mm: (+/- 0.03mm) |
