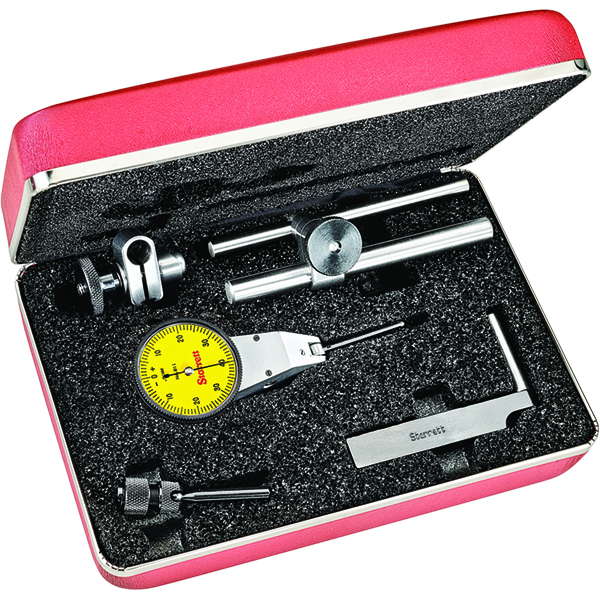

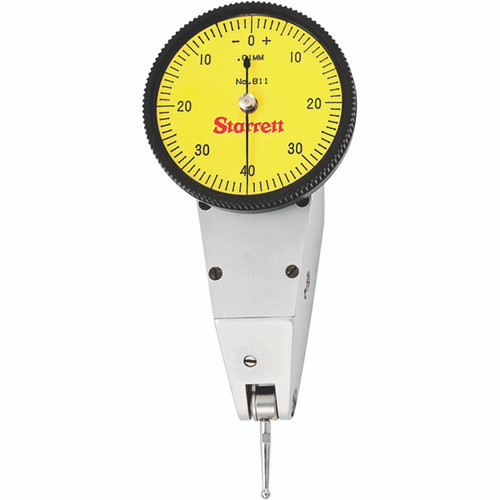

Starrett 57083 | 0mm-0.80mm Range Dial Test Indicator 0.01mm Graduation Yellow Dial

About This Item

Features

• Contact point reverses automatically, always maintaining clockwise hand rotation
• Contacts are frictionally adjustable and replaceable
• Contacts also available individually in steel, carbide and different sizes
• Some of the most versatile and unique indicators available
• Swivel head feature allows positioning to suit your line of sight from horizontal to vertical and at any angle in between 90 Deg
• In Case
• Inch reading indicators are available with white, red, or black dials - metric indicators with yellow dials
• Smooth, jeweled movement
• Large, 1-3/8" (35mm) dial diameter for increased readability
• Attachments include dovetail body clamp, tool post holder, swivel post snug with dovetail indicator clamp, and snug and rod unit
• Two positioning mounts work with dovetail test indicator accessories

Product Specifications

Range (mm)	0.8mm
Graduations (mm)	0.01mm
Dial Reading	0-40-0
Attachments	With Attachments
Contact Point Ball Diameter (in)	.078" (2mm)
Contact Point Length (in)	5/8"
Contact Point Length (mm)	16mm
Dial Color	Yellow
