Features

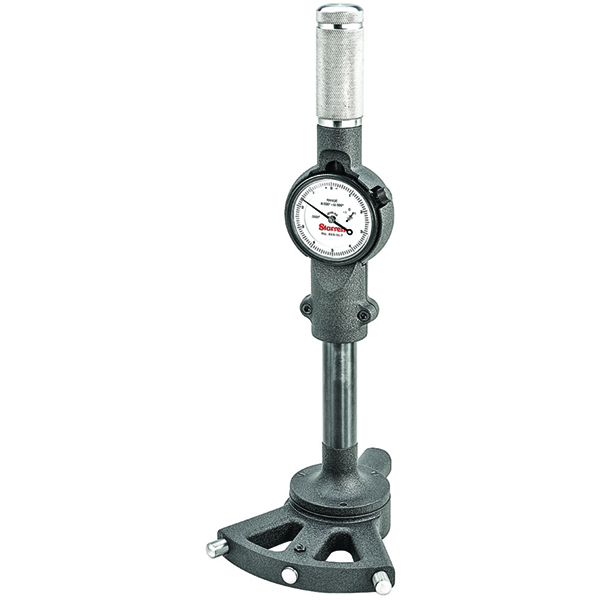

- Can be easily held to inspect bores and hole sizes without removing the workpiece
- An adjustable range screw and two centralizing plungers provide accurate, three-point contact for tool alignment in larger bores
- All contacts and centralized plungers are of hardened tool steel for wear and spring-loaded for sensitivity
- The housing and knurled handle are aluminum for light weight and good balance
- Dial indicators have jewel bearings for sensitivity

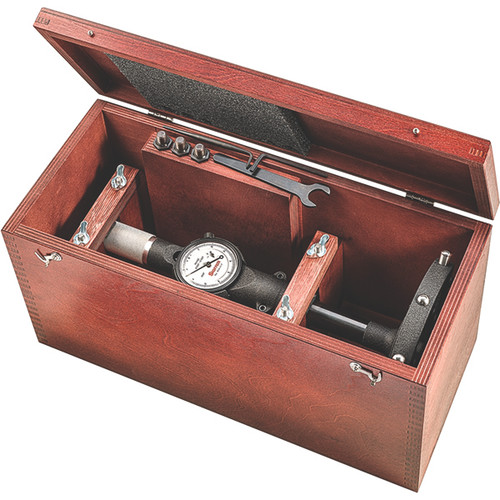

- Furnished in finished wood case
- Bore depths are also available up to 12" (300mm) in 1" (25mm) increments on special order
- Also available with carbide contacts or electronic indicators with output capability on special order
Product Specifications
| Range (in) | 8 to 12-1/8" |
| Graduations (in) | .0001" |
| Approximate Measuring Depth (in) | 7" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Starrett
Type:
Dial Bore Gage
Minimum Measurement (Inch):
8"
Minimum Measurement (Decimal Inch):
8.0000"
Minimum Measurement (mm):
203.20mm
Maximum Measurement (Inch):
12-1/8"
Maximum Measurement (Decimal Inch):
12.1250"
Maximum Measurement (mm):
307.98mm
Graduation (Inch):
0"
Graduation (Decimal Inch):
0.0001"
Graduation (mm):
0.002mm
Gage Depth (Inch):
7"
Gage Depth (Decimal Inch):
7.0000"
Gage Depth (mm):
177.80mm
Ships:
From Manufacturer
