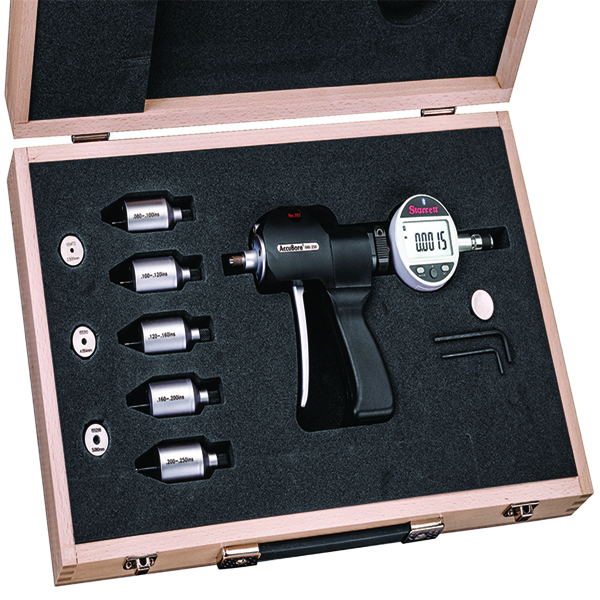

Starrett S781BXTBZ | 0.0800"-0.2500" Range Digital AccuBore Gage 0.0005" Resolution

$8,886.00
Ships:
From Manufacturer
Brand:
Starrett
Type:
AccuBore Gage
Minimum Measurement (Inch):
5/64"
Minimum Measurement (Decimal Inch):
0.0800"
Minimum Measurement (mm):
2mm
Maximum Measurement (Inch):
1/4"
Maximum Measurement (Decimal Inch):
0.2500"
Maximum Measurement (mm):
6mm
Gage Depth (Inch):
3/8 - 3/4"
Gage Depth (Decimal Inch):
0.3750 - 0.7500"
Gage Depth (mm):
9mm - 18mm
Resolution (Inch):
0"
Resolution (Decimal Inch):
0.0005"
Resolution (mm):
0.001mm
Ships:
From Manufacturer
SKU:
30050609
UPC:
Weight:
0.11 LBS
Shipping:
Free Shipping
Features
  • Single-hand operation with right- and left-hand viewing flexibility
  • Large, easy-to-read digital display with integrated LEDs tolerances
  • Enhanced wear life with carbide-faced contacts - available from 1/2" to 8"
  • True alignment with mechanically-driven parallel anvils
  • Push button inch/metric conversion
  • Preset and preset recall
  • Hold, max/min and zeroing capabilities
  • Blind bore measurement is standard from .50" (12.7mm) and above
  • Bluetooth output capability for Statistical Process Control (SPC) analysis
Product Specifications
Range (in) .080-.250"
Range (mm) 2-6mm
Resolution (in) .00005"
Resolution (mm) 0.001mm
SPC Output SPC Output
Approximate Measuring Depth (in) 3/8 to 3/4"
Approximate Measuring Depth (mm) 9-18mm
Number of Heads 5
Number of Rings 3
