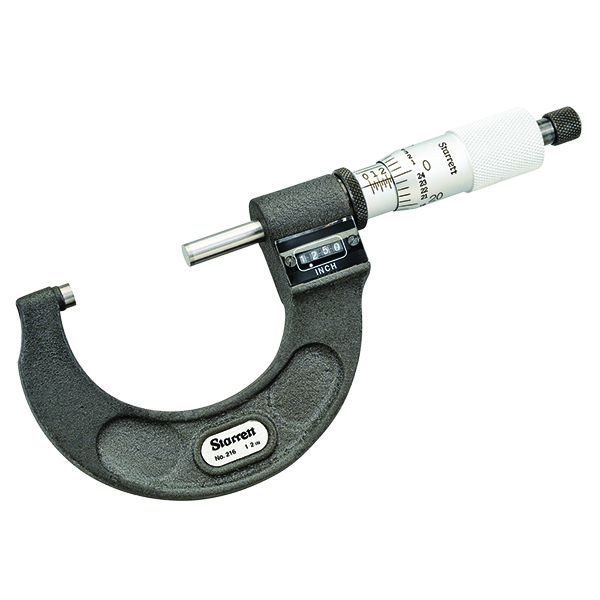

Starrett 56156 | 1"-2" Outside Micrometer 0.0001" Graduation Ratchet Thimble

About This Item

Features

• This is the Starrett mechanical digital micrometer - simple to use even by the inexperienced
• Clear, easily read numbers reduce errors
• Balanced frame design for comfortable and accurate measuring
• Gracefully designed tapered frame for use in narrow slots and tight places
• Carbide Measuring Faces
• Micro-lapped measuring faces
• Starrett no-glare satin chrome finish on thimble and sleeve
• No-glare black finish on the frame
• Ring-type knurled lock nut for quick and sure locking
• The anvil and spindle are sized at .250" (6.35mm)
• Extremely hard and stable one-piece spindle
• Combination ratchet and speeder for uniform pressure and quicker adjustment
• .001" or .01mm is read directly from the counter
• .0001" or .001mm is read from the vernier scale on the micrometer sleeve

Product Specifications

Micrometer Type	Outside
Range (in)	1-2"
Graduations (in)	.0001"
Anvil/Spindle Material	Carbide
Anvil Type	Flat
Spindle Type	Flat
Lock Nut Type	Knurled Ring Type
Thimble Type	Ratchet
Accuracy (in)	+/-.00005"
