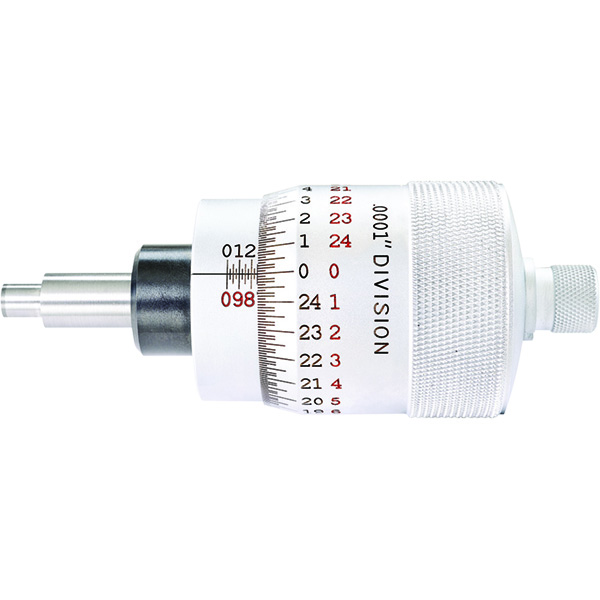

Starrett T468XSP-1 | 0"-1" Range Micrometer Head 0.0001" Graduation

$770.00
Ships:
From Manufacturer
Brand:
Starrett
Minimum Measurement (Inch):
0"
Minimum Measurement (Decimal Inch):
0.0000"
Minimum Measurement (mm):
0mm
Maximum Measurement (Inch):
1"
Maximum Measurement (Decimal Inch):
1.0000"
Maximum Measurement (mm):
25.40mm
Spindle Diameter (Inch):
5/16"
Spindle Diameter (Decimal Inch):
0.3120"
Spindle Diameter (mm):
7.92mm
Overall Length (Inch):
5-1/4"
Overall Length (Decimal Inch):
5.2500"
Overall Length (mm):
133.35mm
Graduation (Inch):
0"
Graduation (Decimal Inch):
0.0001"
Spindle Type:
Flat
Material:
Carbide
Finish/Coating:
Satin Chrome
Ships:
From Manufacturer
SKU:
30024491
UPC:
049659671254
Weight:
0.11 LBS
Shipping:
Free Shipping
Features
  • Starrett satin chrome finish - no glare - resists rust on all reading surfaces
  • Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
  • Quick-reading figures
  • Extremely hard and stable one-piece spindle (the heart of our accuracy and long life)
  • Micro-lapped measuring face for flatness and squareness
  • Quick and easy adjustment
  • All graduations are direct reading - no vernier lines to match
  • Double figures in red and black on the sleeve and thimble, permitting reading both ways with the spindle moving in either direction
Product Specifications
Micrometer Type Mechanical Micrometer Head
Range (in) 0-1"
Graduations (in) .0001"
Spindle Material Carbide
Spindle Type Flat
Thimble Type Plain
Accuracy (in) +/-.00005"
