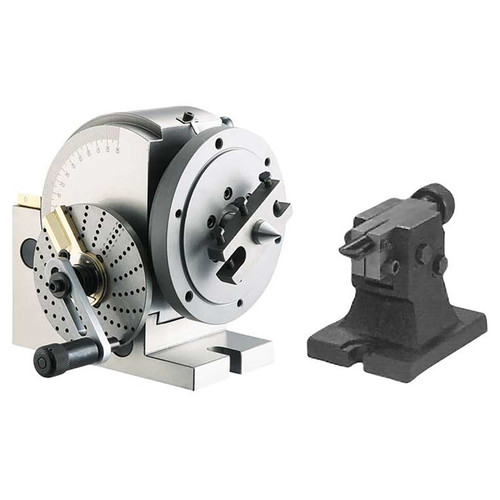

The center face can be tilted from a horizontal position of 90 degree down to - 10 degree from vertical, and inclinations can be read off a scale graduated in degrees. The center is built to highest engineering standards and is factory-inspected and tested to assure complete satisfaction. The ratio of worm to gear is 1:40.
Note: BS-1 applicable chuck: 5" or 6"
| Manufacturer Part Number | 326052 |
| Centerline Height (mm) | 128mm |
| Headstock ID Taper Size | MT3 |
| Overall Length (mm) | 245mm |
| Overall Width (mm) | 230mm |
| Overall Height (mm) | 220mm |
| Model Number | BS-1 |
| Base Length (mm) | 205mm |
| Base Width (mm) | 114mm |
| Bolt Slots (mm) | 16mm |
| Product Type | Dividing Head |
