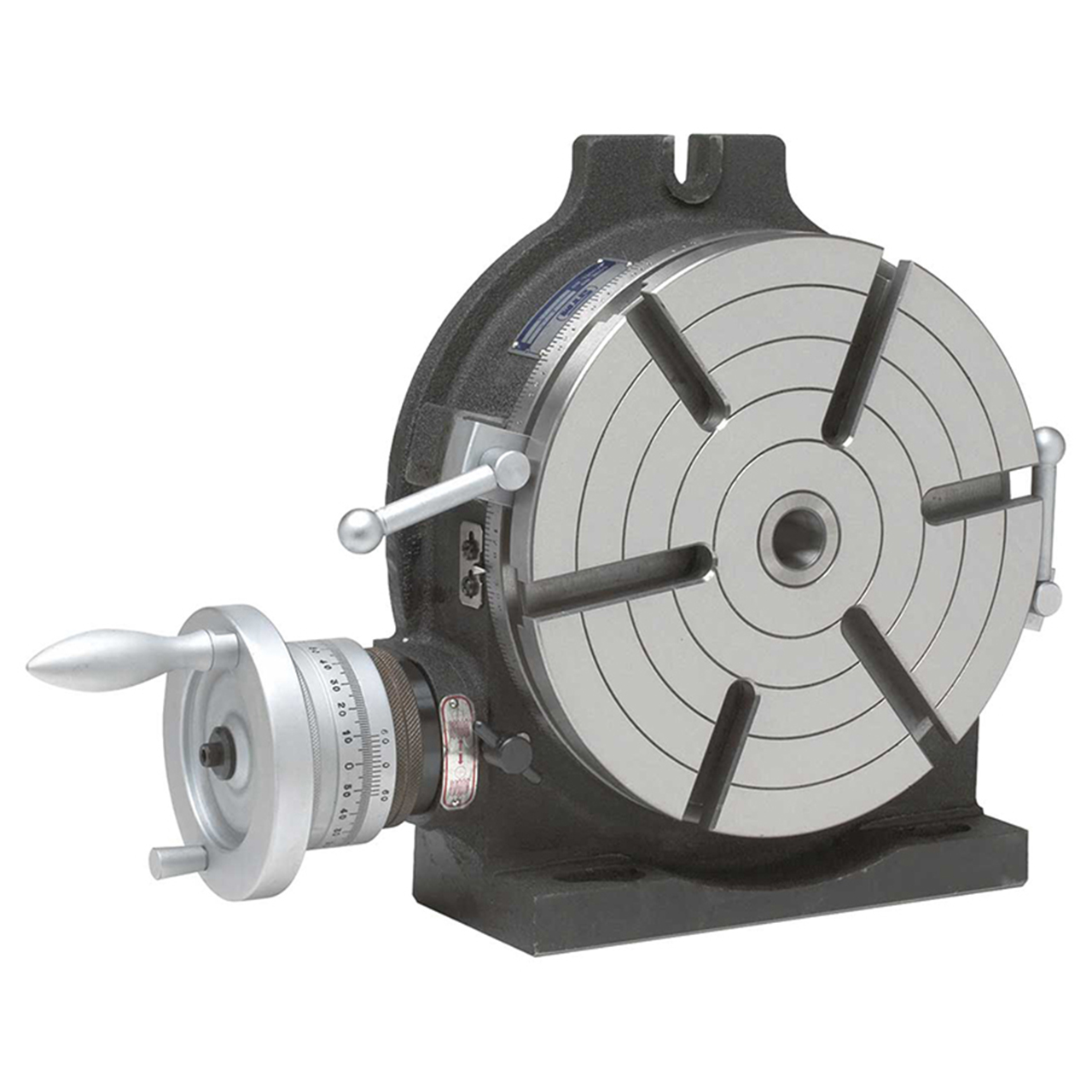

STM 326520 | 14" Diameter x 0.6300" Width x 5.51" Height Horizontal/Vertical Rotary and Dividing Table

$2,183.03 $1,877.41
(You save $305.62)
Brand:
STM
Height (Inch):
5-33/64"
Height (Decimal Inch):
5.5100"
Height (mm):
139.95mm
Width (Inch):
5/8"
Width (Decimal Inch):
0.6300"
Width (mm):
16.00mm
Diameter (Inch):
14"
Diameter (Decimal Inch):
14.0000"
Diameter (mm):
355.60mm
SKU:
50034237
UPC:
Weight:
220.00 LBS
Shipping:
$350.00 (Fixed Shipping Cost)

Features

  • This HV Type Rotary Table is so designed as to permit machining operations at a higher dimension than that of RT Type Rotary tables
  • The base can be used in a vertical position to enable the carrying out of center work
  • Worm gear is 90:1

Product Specifications
Manufacturer Part Number 326520
Setting Position Horizontal; Vertical
Tilting No
Cross-Slide No
Table Diameter (Inch) 14"
T-Slot Width (Decimal Inch) 0.63"
Centerline Height (Decimal Inch) 230"
Overall Height (Decimal Inch) 5.51"
Model Number HV-14
Center Taper MT4 Product Type Horizontal/Vertical Rotary and Dividing Table
