Features

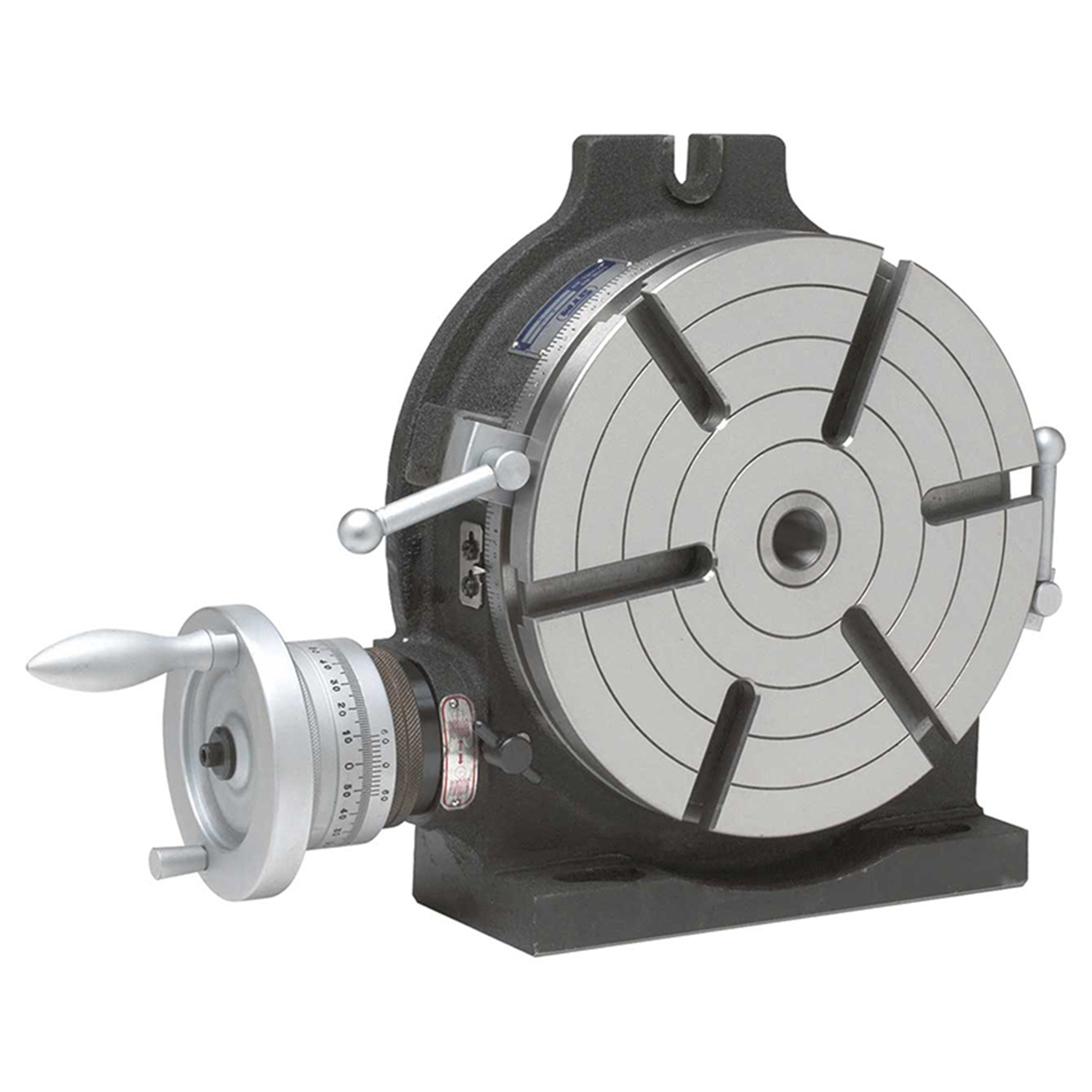

- This HV Type Rotary Table is so designed as to permit machining operations at a higher dimension than that of RT Type Rotary tables
- The base can be used in a vertical position to enable the carrying out of center work
- Worm gear is 90:1
Product Specifications
| Manufacturer Part Number | 326525 |
| Setting Position | Horizontal; Vertical |
| Tilting | No |
| Cross-Slide | No |
| Table Diameter (Inch) | 16" |
| T-Slot Width (Decimal Inch) | 0.63" |
| Centerline Height (Decimal Inch) | 255" |
| Overall Height (Decimal Inch) | 6.10" |
| Model Number | HV-16 |
| Center Taper | MT4 |
| Product Type | Horizontal/Vertical Rotary and Dividing Table |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
STM
Height (Inch):
6-3/32"
Height (Decimal Inch):
6.1000"
Height (mm):
154.94mm
Width (Inch):
5/8"
Width (Decimal Inch):
0.6300"
Width (mm):
16.00mm
Diameter (Inch):
16"
Diameter (Decimal Inch):
16.0000"
Diameter (mm):
406.40mm
