Features
- Minimum set-up time
- Rugged construction
- 10 Second vernier scale
- Tilting range 90 degree from horizontal to vertical position
- 1 rotation of handle equals 3 degrees, 5 minutes tilting reading
- Table Dial 1 minute graduations
- Fast degrees: Dividing notch pin & 24 holes in 15 degree around, insures rapid accurate spacing
Product Specifications
| Manufacturer Part Number | 326560 |
| Setting Position | Tilting |
| Tilting | Yes |
| Cross-Slide | No |
| Table Diameter (Inch) | 4" |
| Centerline Height (mm) | 80mm |
| Overall Height (mm) | 117mm |
| Model Number | VU-100 |

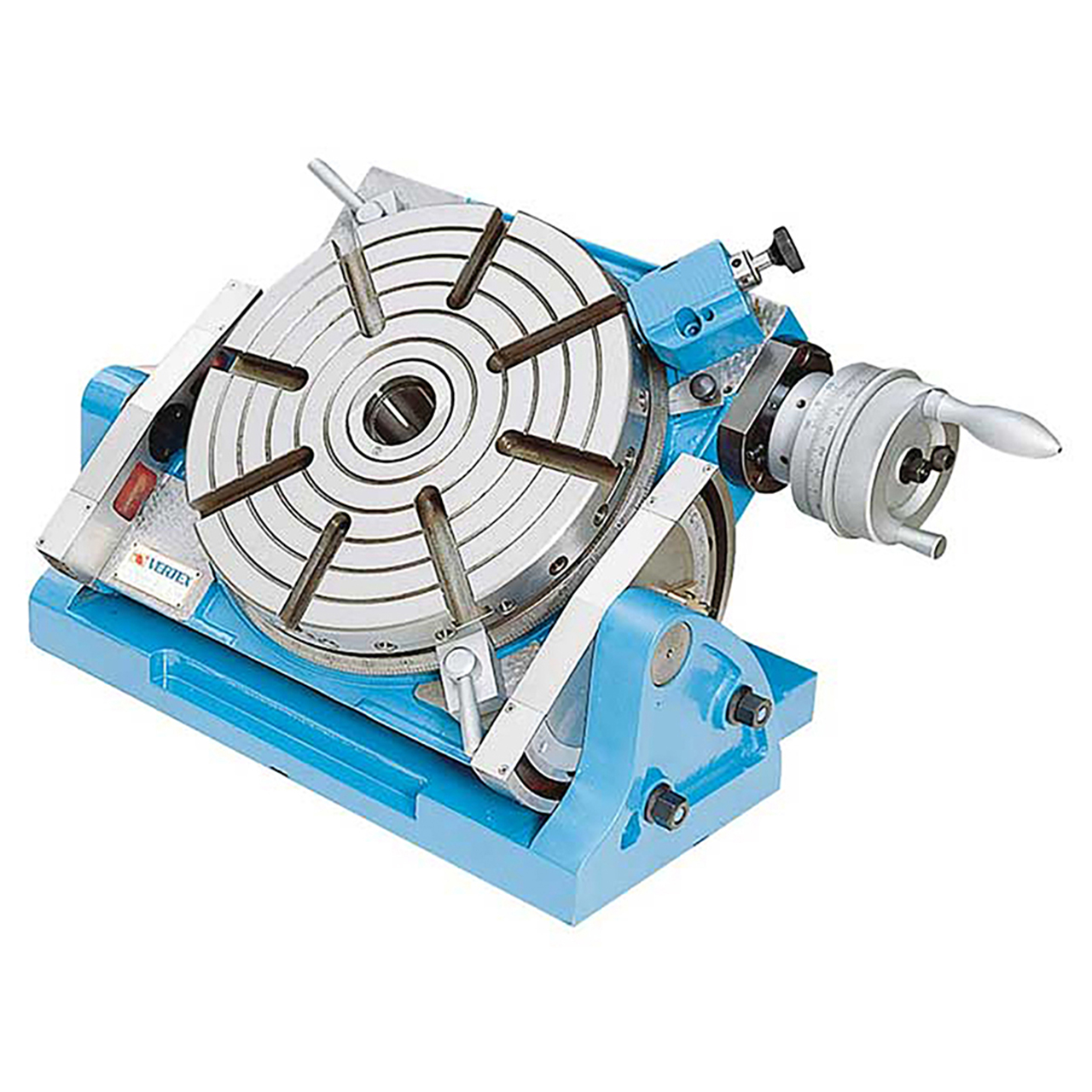

| Product Type | Universal Tilting Rotary Table |
