Features
- Ruggedly constructed for milling, drilling, shaping, grinding and many other machine shop applications
- Body is made of high quality ductile cast iron, resists deflection or bending
Product Specifications
| Manufacturer Part Number | 329205 |
| Jaw Width (mm) | 100mm |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Jaw Opening Capacity (mm) | 170mm |
| Operation Type | Manual |
| Jaw Height (mm) | 36mm |
| Model Number | HP-40G |
| Base Length (mm) | 430mm |
| Overall Length (mm) | 525mm |
| Maximum Clamping Force (kgf.m) | 2500 |
| Overall Width (mm) | 160mm |
| Overall Height (mm) | 94mm |

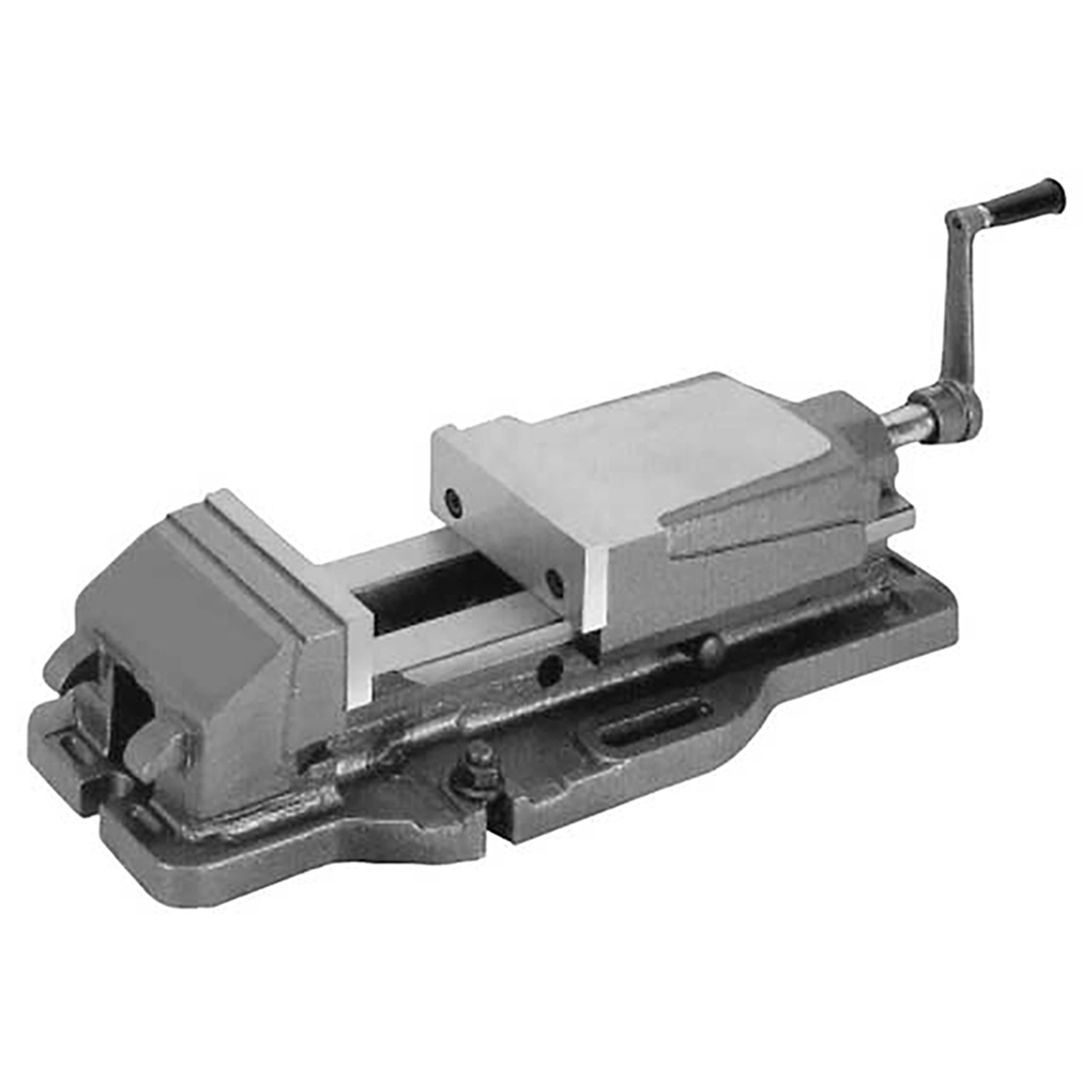

| Product Type | Hydraulic Machine Vise |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
STM
Width (Inch):
3-15/16"
Width (Decimal Inch):
3.9370"
Width (mm):
100.00mm
interval quantity:
1
