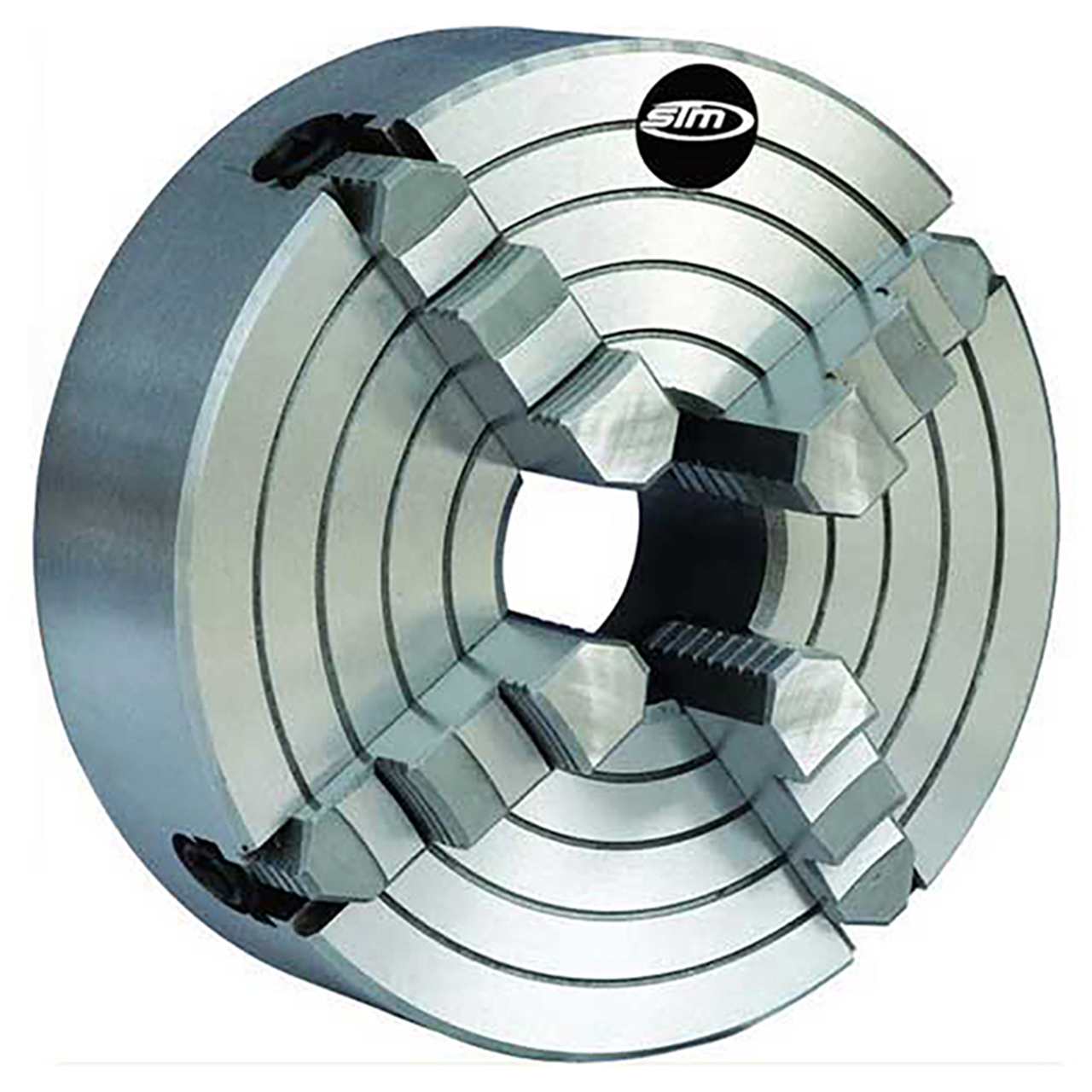

STM 4450150 | 16" Size 4 Jaw Cast Iron Manual Lathe Chuck

$1,370.92
SKU:
50034573
Weight:
211.00 LBS
Shipping:
Free Shipping
Features
  • 4 jaw, independent chuck with manual gripping, and a high quality cast iron body
  • Chuck bodies in sizes up to 6" diameter, are made from steel
  • 4 jaws ensure the precise centering of square-shaped workpieces with maximum permitted gripping force
  • Chucks with diameters 10" and above are equipped with additional t-slots, permitting the addition of extra jaws
  • Mounted on the machine tool spindle from the back of the chuck, using the adapter plate
Application:
  • This precision chuck, with increased gripping accuracy, is made for all types of very high precision workshop machining operations on conventional lathes
  • Suitable for machining square and round workpieces

Product Specifications
Manufacturer Part Number4450150
Chuck TypeIndependent
Nominal Chuck Size (Inch)16"
Number of Jaws4
MountD1-8
Through-Hole Diameter (Decimal Inch)4.921"
Body MaterialCast Iron
Reversible JawsNo
Product TypeManual Lathe Chuck
