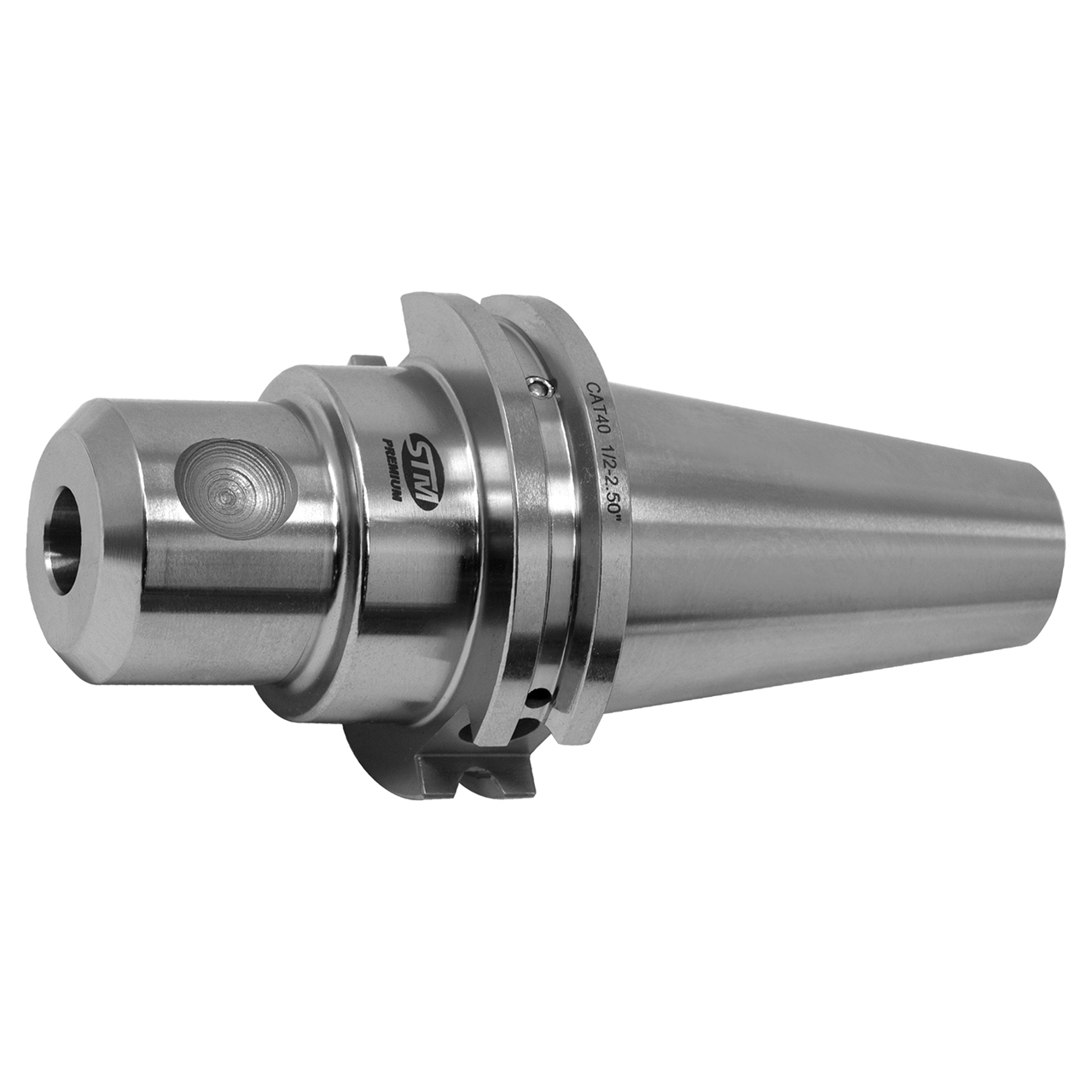

Features
- AD/B DIN coolant through flange - standard
- TIR, 0.0002" OD to ID
- Factory balanced to save spindle life and tool life, and to increase productivity
- Comes with certificate
Product Specifications
| Manufacturer Part Number | 525014 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 3/8" |
| Projection (Decimal Inch) | 2.50" |
| Through Coolant | Yes |
| Balanced to (RPM) | 8000 RPM at G2.5 |
| Seat Depth (Decimal Inch) | 1.26" |
| Set Screw | 3/8"-24 |
| Product Type | End Mill Holder & Adapter |
