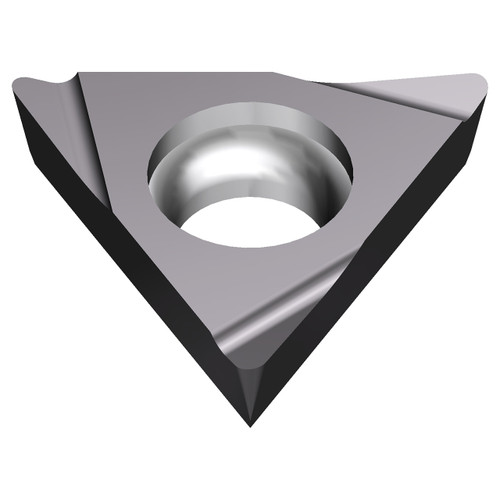

Product Specifications
| EDP Number | 10R4501 |
| Product Code-ANSI | TBGT520LFY-AC1030U |
| Product Code-ISO | TBGT060101L-FY |
| Manufacturer Grade Identification | AC1030U |
| Series | AC1030U |
| Cutting Edge Length (Decimal Inch) | 0.2717" |
| Cutting Edge Length (mm) | 6.90mm |
| Nose Radius (Decimal Inch) | 0.0039" |
| Nose Radius (mm) | 0.10mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.1563" |
| Inscribed Circle Diameter (mm) | 3.97mm |
| Hole Diameter (mm) | 2.20mm |
| Insert Thickness (Decimal Inch) | 0.0626" |
| Insert Thickness (mm) | 1.59mm |
| Relief Angle | 5 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | G |
| Chip Breaker | LFY |
| Corner Angle | 60 |
| Insert Style | TBGT |
| Secondary Workpiece Material | Steel, Stainless Steel, Small Machining |
| Primary Workpiece Material | Steel, Stainless Steel, Small Machining |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | P10, M10 |
| Insert Holding Method | Screw-On |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Sumitomo
Insert Style:
TBGT
Insert Size:
520
Material:
Carbide
Length (Inch):
9/32"
Length (Decimal Inch):
0.2717"
Length (mm):
6.90mm
Inscribed Circle (Inch):
5/32"
Inscribed Circle (Decimal Inch):
0.1563"
Inscribed Circle (mm):
3.97mm
Thickness (Inch):
1/16"
Thickness (Decimal Inch):
0.0626"
Thickness (mm):
1.59mm
Corner Radius (Decimal Inch):
0.0039"
Corner Radius (mm):
0.10mm
Manufacturer's Grade:
AC1030U
interval quantity:
10
Ships:
From California in 1-2 Days
