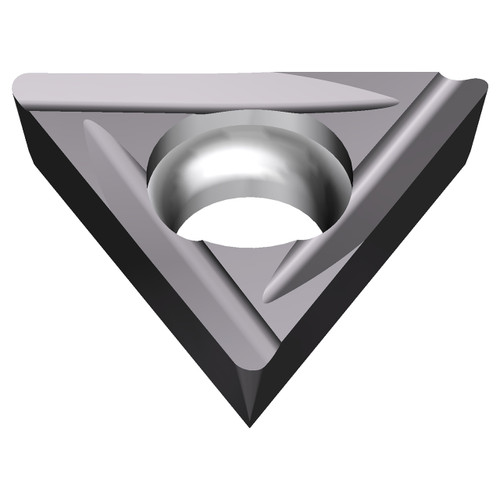

| EDP Number | 10R4ABH |
| Product Code-ANSI | TBGT521LFX-AC1030U |
| Product Code-ISO | TBGT060104L-FX |
| Manufacturer Grade Identification | AC1030U |
| Series | AC1030U |
| Cutting Edge Length (Decimal Inch) | 0.2717" |
| Cutting Edge Length (mm) | 6.90mm |
| Nose Radius (Decimal Inch) | 0.0157" |
| Nose Radius (mm) | 0.40mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.1563" |
| Inscribed Circle Diameter (mm) | 3.97mm |
| Hole Diameter (mm) | 2.20mm |
| Insert Thickness (Decimal Inch) | 0.0626" |
| Insert Thickness (mm) | 1.59mm |
| Relief Angle | 5 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | G |
| Chip Breaker | LFX |
| Corner Angle | 60 |
| Insert Style | TBGT |
| Secondary Workpiece Material | Steel, Stainless Steel, Small Machining |
| Primary Workpiece Material | Steel, Stainless Steel, Small Machining |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | P10, M10 |
| Insert Holding Method | Screw-On |
