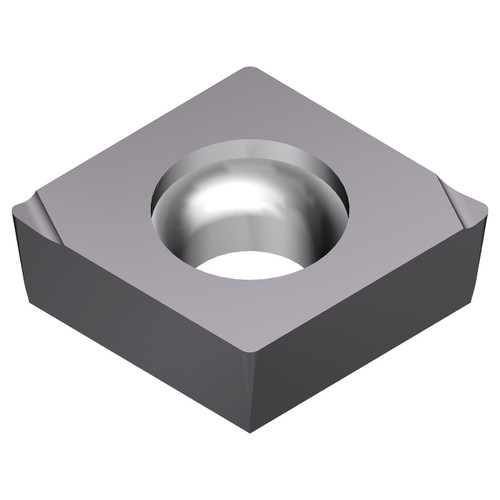

Sumitomo 10R4AXJ | CCGT04X102L-FYS-AC1030U 0.1693" Circle Diameter x 2.30mm Hole Diameter x 0.0079" Radius Absotech Coated Carbide Turning Insert

$20.31 $18.28
(You save $2.03)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
CCGT
Insert Size:
04X102
Material:
Carbide
Length (Inch):
3/16"
Length (Decimal Inch):
0.1957"
Length (mm):
4.97mm
Inscribed Circle (Inch):
5/32"
Inscribed Circle (Decimal Inch):
0.1693"
Inscribed Circle (mm):
4.30mm
Thickness (Inch):
1/16"
Thickness (Decimal Inch):
0.0709"
Thickness (mm):
1.80mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0079"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
AC1030U
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23166759
Weight:
0.12 LBS
Shipping:
Free Shipping
Sumitomo 10R4AXJ | CCGT04X102L-FYS-AC1030U 0.1693" Circle Diameter x 2.30mm Hole Diameter x 0.0079" Radius Absotech Coated Carbide Turning Insert

Product Specifications
EDP Number10R4AXJ
Product Code-ANSICCGT04X102L-FYS-AC1030U
Product Code-ISOCCGT04X102L-FYS
Manufacturer Grade IdentificationAC1030U
SeriesAC1030U
Cutting Edge Length (Decimal Inch)0.1957"
Cutting Edge Length (mm)4.97mm
Nose Radius (Decimal Inch)0.0079"
Nose Radius (mm)0.20mm
Inscribed Circle Diameter (Decimal Inch)0.1693"
Inscribed Circle Diameter (mm)4.30mm
Hole Diameter (mm)2.30mm
Insert Thickness (Decimal Inch)0.0709"
Insert Thickness (mm)1.80mm
Relief Angle7 Degree
Rake AnglePositive
Insert MaterialCarbide
Tolerance ClassG
Chip BreakerLFYS
Corner Angle80
Insert StyleCCGT
Secondary Workpiece MaterialSteel, Stainless Steel, Small Machining
Primary Workpiece MaterialSteel, Stainless Steel, Small Machining
CoatingAbsotech
Coating ProcessPVD
Standard Designation of the Grade, Main ApplicationP10, M10
Insert Holding MethodScrew-On
