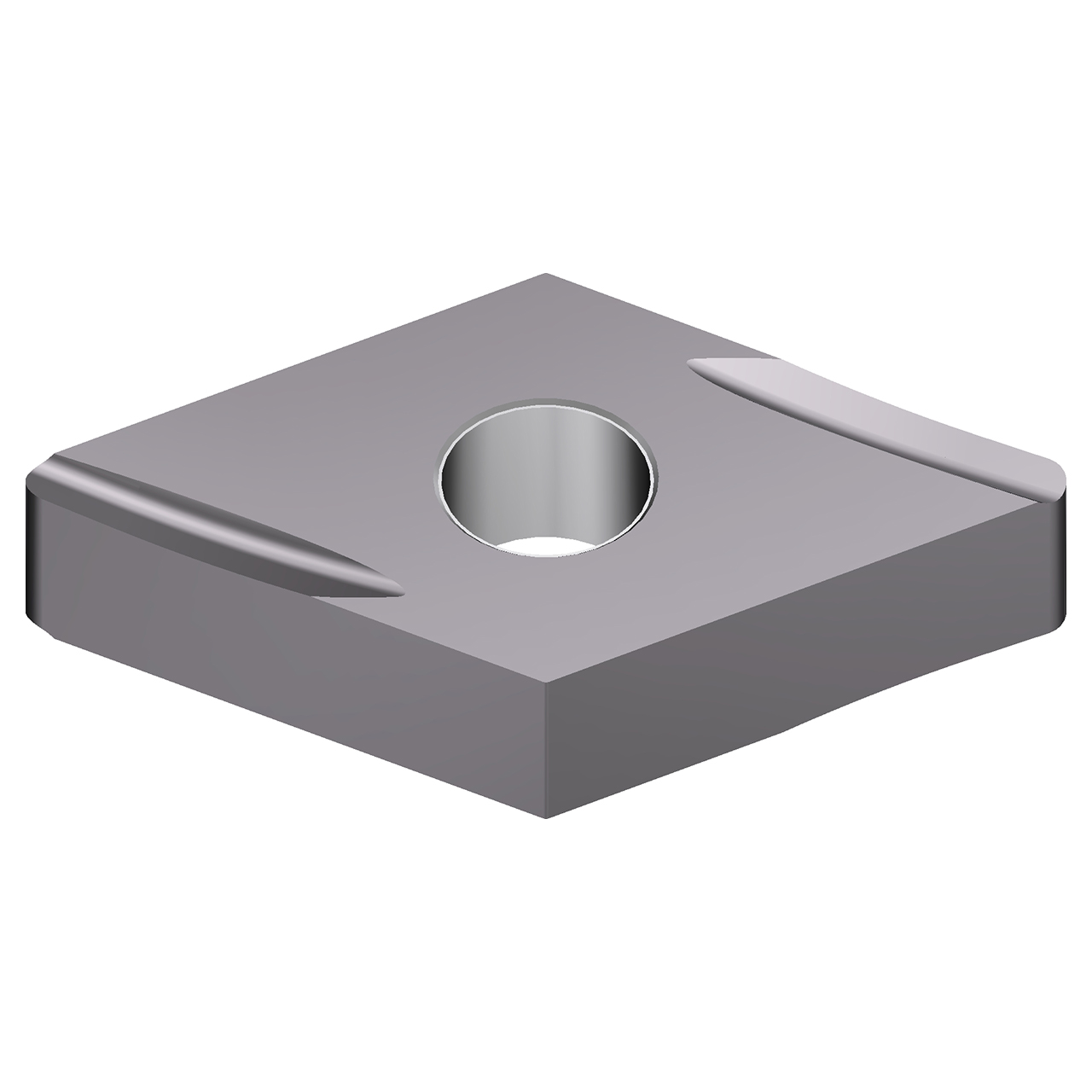

Sumitomo 10R4BAH | DNGG432RFX-AC1030U 0.5000" Circle Diameter x 5.16mm Hole Diameter x 0.0315" Radius Absotech Coated Carbide Turning Insert

$16.05 $14.45
(You save $1.60)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
DNGG
Insert Size:
432
Material:
Carbide
Length (Inch):
5/8"
Length (Decimal Inch):
0.6102"
Length (mm):
15.50mm
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
AC1030U
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23166800
Weight:
0.25 LBS
Shipping:
Free Shipping
Sumitomo 10R4BAH | DNGG432RFX-AC1030U 0.5000" Circle Diameter x 5.16mm Hole Diameter x 0.0315" Radius Absotech Coated Carbide Turning Insert

Product Specifications
EDP Number10R4BAH
Product Code-ANSIDNGG432RFX-AC1030U
Product Code-ISODNGG150408R-FX
Manufacturer Grade IdentificationAC1030U
SeriesAC1030U
Cutting Edge Length (Decimal Inch)0.6102"
Cutting Edge Length (mm)15.50mm
Nose Radius (Decimal Inch)0.0315"
Nose Radius (mm)0.80mm
Inscribed Circle Diameter (Decimal Inch)0.5000"
Inscribed Circle Diameter (mm)12.70mm
Hole Diameter (mm)5.16mm
Insert Thickness (Decimal Inch)0.1874"
Insert Thickness (mm)4.76mm
Relief Angle0 Degree
Rake AngleNegative
Insert MaterialCarbide
Tolerance ClassG
Chip BreakerRFX
Corner Angle55
Insert StyleDNGG
Secondary Workpiece MaterialSteel, Stainless Steel, Small Machining
Primary Workpiece MaterialSteel, Stainless Steel, Small Machining
CoatingAbsotech
Coating ProcessPVD
Standard Designation of the Grade, Main ApplicationP10, M10
Insert Holding MethodPin & Clamp
