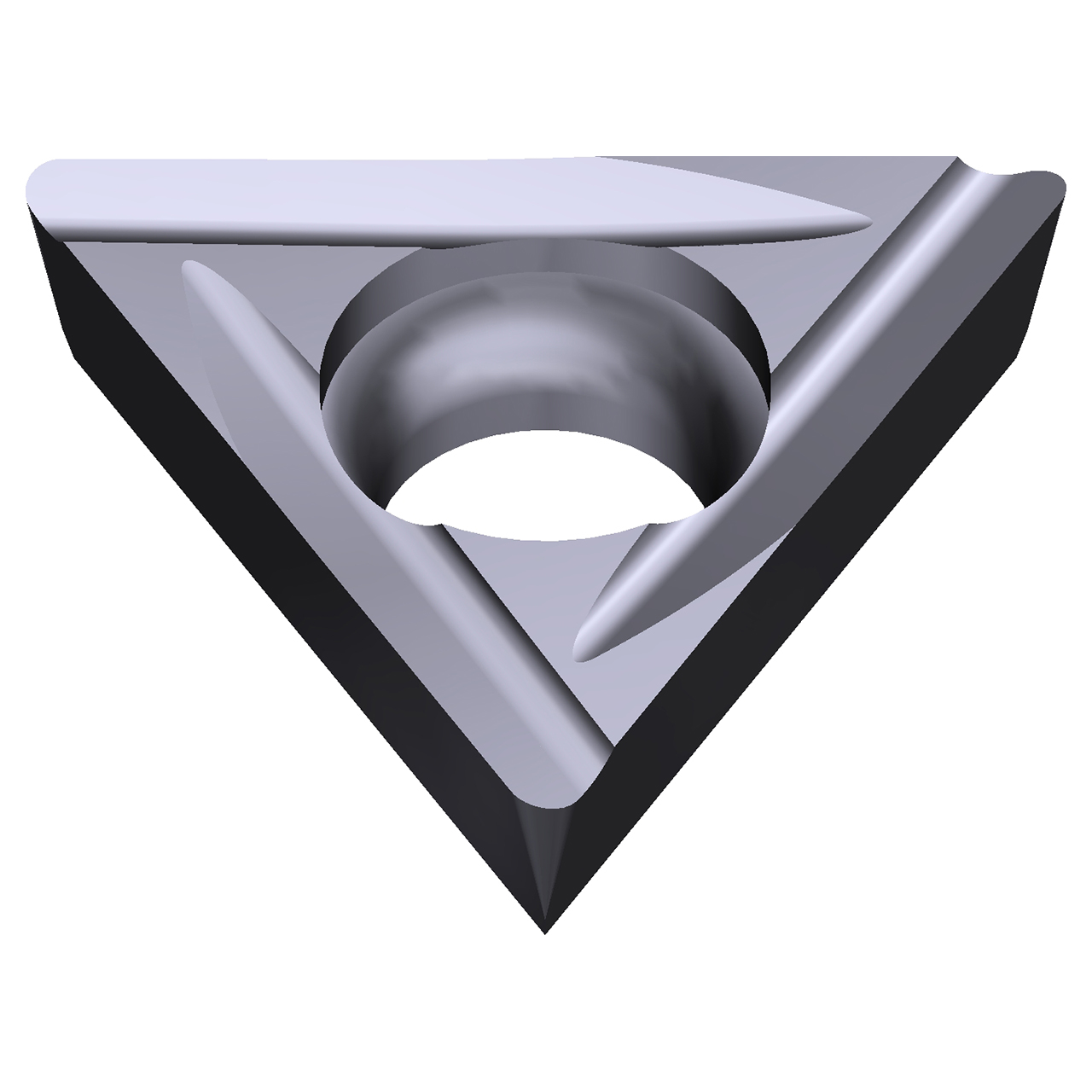

Sumitomo 10T6452 | TCGT21.50.5LFX-AC5025S 0.2500" Circle Diameter x 2.80mm Hole Diameter x 0.0079" Radius Absotech Coated Carbide Turning Insert

$12.69 $10.15
(You save $2.54)
Brand:
Sumitomo
Insert Style:
TCGT
Insert Size:
21.50.5
Material:
Carbide
Length (Inch):
7/16"
Length (Decimal Inch):
0.4331"
Length (mm):
11.00mm
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0079"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
AC5025S
interval quantity:
2
SKU:
23167133
UPC:
Weight:
0.10 LBS
Minimum Purchase:
2 units
Shipping:
Calculated at Checkout
Sumitomo 10T6452 | TCGT21.50.5LFX-AC5025S 0.2500" Circle Diameter x 2.80mm Hole Diameter x 0.0079" Radius Absotech Coated Carbide Turning Insert

Product Specifications
EDP Number10T6452
Product Code-ANSITCGT21.50.5LFX-AC5025S
Product Code-ISOTCGT110202L-FX
Manufacturer Grade IdentificationAC5025S
SeriesAC5000S
Cutting Edge Length (Decimal Inch)0.4331"
Cutting Edge Length (mm)11.00mm
Nose Radius (Decimal Inch)0.0079"
Nose Radius (mm)0.20mm
Inscribed Circle Diameter (Decimal Inch)0.2500"
Inscribed Circle Diameter (mm)6.35mm
Hole Diameter (mm)2.80mm
Insert Thickness (Decimal Inch)0.0937"
Insert Thickness (mm)2.38mm
Relief Angle7 Degree
Rake AnglePositive
Insert MaterialCarbide
Tolerance ClassG
Chip BreakerLFX
Corner Angle60
Insert StyleTCGT
Secondary Workpiece MaterialStainless Steel
Primary Workpiece MaterialHeat Resistant Alloy
CoatingAbsotech
Coating ProcessPVD
Standard Designation of the Grade, Main ApplicationS15, S10, S20
Insert Holding MethodScrew-On
