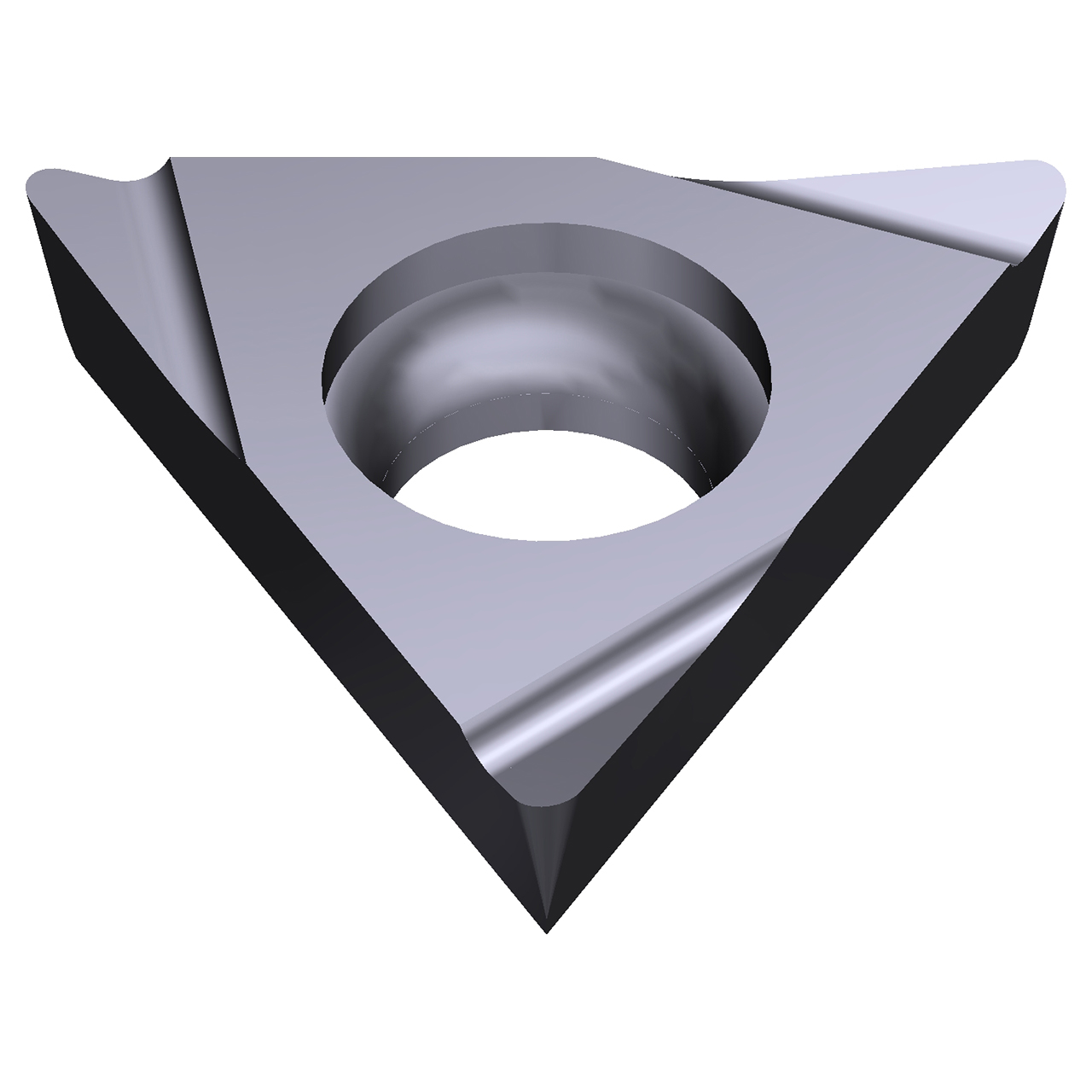

| EDP Number | 10T6AWJ |
| Product Code-ANSI | TPGT1.81.50.5RFY-AC5025S |
| Product Code-ISO | TPGT090202R-FY |
| Manufacturer Grade Identification | AC5025S |
| Series | AC5000S |
| Cutting Edge Length (Decimal Inch) | 0.3780" |
| Cutting Edge Length (mm) | 9.60mm |
| Nose Radius (Decimal Inch) | 0.0079" |
| Nose Radius (mm) | 0.20mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.2189" |
| Inscribed Circle Diameter (mm) | 5.56mm |
| Hole Diameter (mm) | 2.80mm |
| Insert Thickness (Decimal Inch) | 0.0937" |
| Insert Thickness (mm) | 2.38mm |
| Relief Angle | 11 Degree |
| Rake Angle | Positive |
| Insert Material | Carbide |
| Tolerance Class | G |
| Chip Breaker | RFY |
| Corner Angle | 60 |
| Insert Style | TPGT |
| Secondary Workpiece Material | Stainless Steel |
| Primary Workpiece Material | Heat Resistant Alloy |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | S15, S10, S20 |
| Insert Holding Method | Screw-On |
