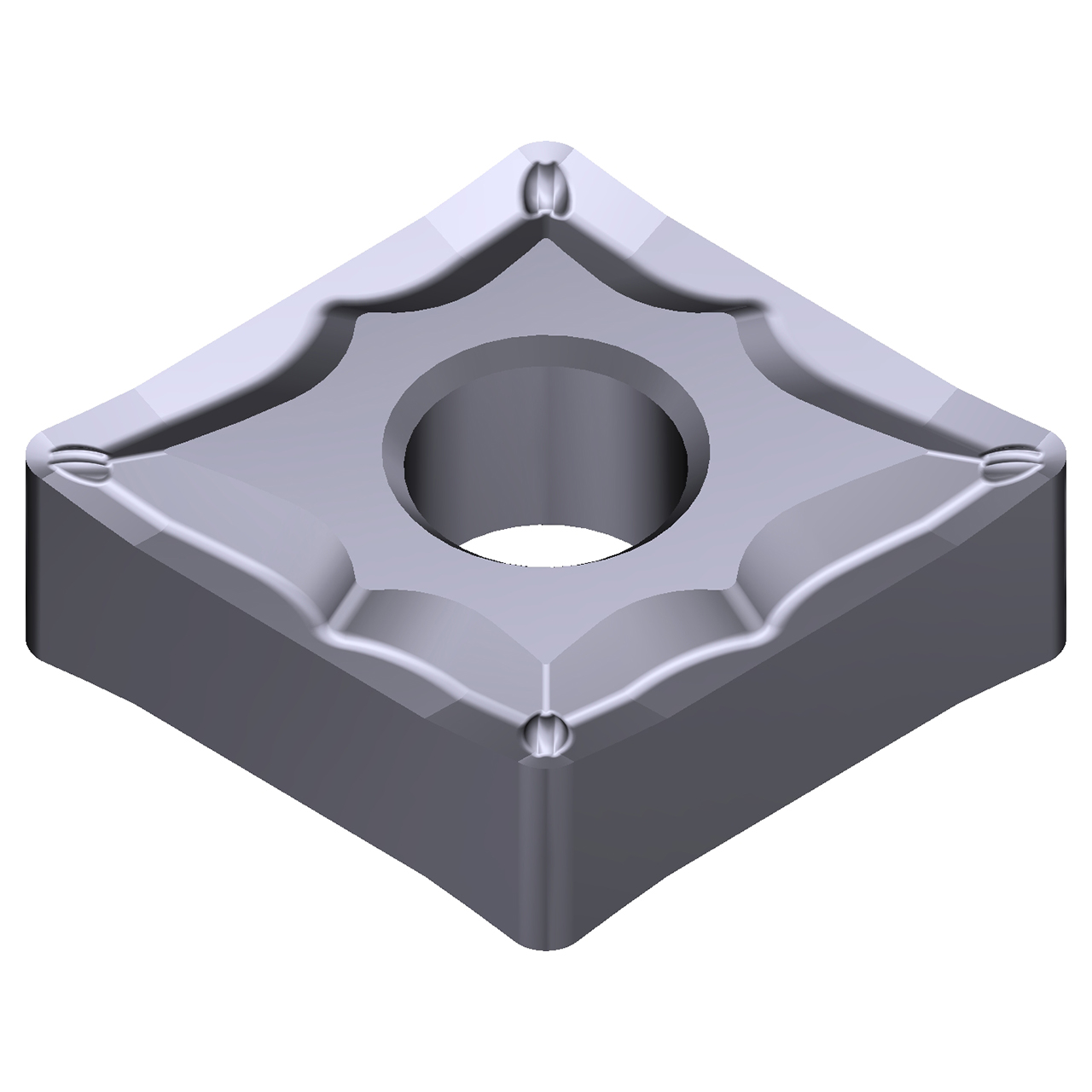

| EDP Number | 10W2AEN |
| Product Code-ANSI | CNGG430.5ESU-AC5005S |
| Product Code-ISO | CNGG120402N-SU |
| Manufacturer Grade Identification | AC5005S |
| Series | AC5000S |
| Cutting Edge Length (Decimal Inch) | 0.5079" |
| Cutting Edge Length (mm) | 12.90mm |
| Nose Radius (Decimal Inch) | 0.0079" |
| Nose Radius (mm) | 0.20mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.5000" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Hole Diameter (mm) | 5.16mm |
| Insert Thickness (Decimal Inch) | 0.1874" |
| Insert Thickness (mm) | 4.76mm |
| Relief Angle | 0 Degree |
| Rake Angle | Negative |
| Insert Material | Carbide |
| Tolerance Class | G |
| Chip Breaker | ESU |
| Corner Angle | 80 |
| Insert Style | CNGG |
| Secondary Workpiece Material | Heat Resistant Alloy |
| Primary Workpiece Material | Heat Resistant Alloy |
| Coating | Absotech |
| Coating Process | PVD |
| Standard Designation of the Grade, Main Application | S05 |
| Insert Holding Method | Pin & Clamp |
