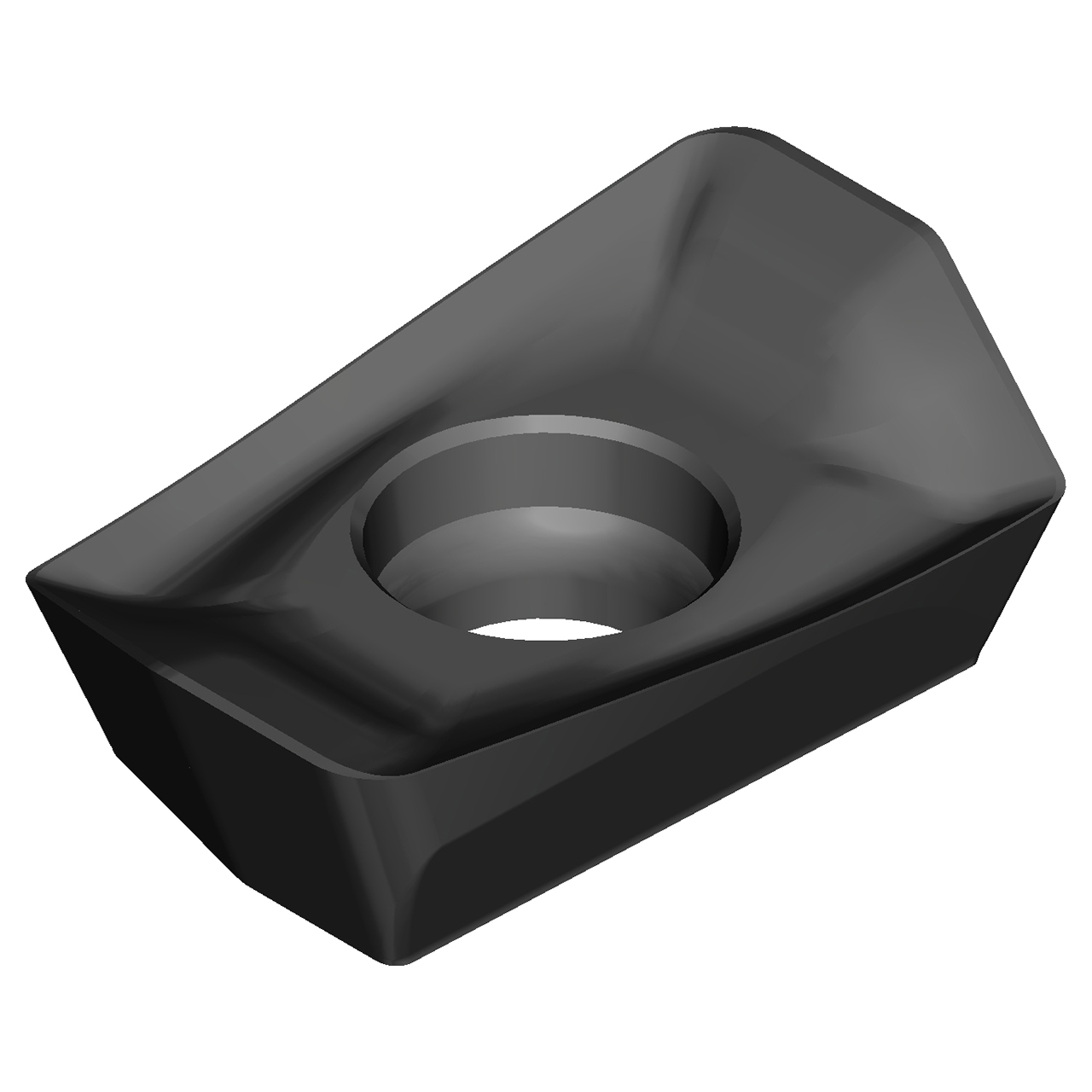

Sumitomo 144VAGH| AOMT11T304PEER-H-ACM200 10.00mm Maximum Depth Cut x 0.40mm Radius x 3.60mm Thickness Carbide ACM200 Coated WEZ Milling Insert

$13.57 $10.86
(You save $2.71)
Ships:
From California in 1-2 Days
Brand:
Sumitomo
Insert Style:
AOMT
Insert Size:
11T3
Material:
Carbide
Manufacturer's Grade:
ACM200
Coating:
ACM200
Width (Inch):
1/2"
Width (Decimal Inch):
0.5039"
Width (mm):
12.80mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1417"
Thickness (mm):
3.60mm
interval quantity:
10
Ships:
From California in 1-2 Days
SKU:
23167727
UPC:
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Sumitomo 144VAGH| AOMT11T304PEER-H-ACM200 10.00mm Maximum Depth Cut x 0.40mm Radius x 3.60mm Thickness Carbide ACM200 Coated WEZ Milling Insert

Product Specifications
EDP Number144VAGH
Product Code-ANSIAOMT11T304PEER-H-ACM200
Manufacturer Grade IdentificationACM200
SeriesWEZ
Maximum Depth of Cut (mm)10.00mm
Cutting Edge Length (Decimal Length)0.5039"
Cutting Edge Length (mm)12.80mm
Nose Radius (Decimal Inch)0.0157"
Nose Radius (mm)0.40mm
Insert Thickness (Decimal Inch)0.1417"
Insert Thickness (mm)3.60mm
CoatingACM200
Coating ProcessCVD
Insert StyleAOMT
Insert SideSingle
Insert Size11T3
Chip BreakerH
Tolerance ClassM
Insert HandR
Insert MaterialCarbide

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Sumitomo
Insert Style:
AOMT
Insert Size:
11T3
Material:
Carbide
Manufacturer's Grade:
ACM200
Coating:
ACM200
Width (Inch):
1/2"
Width (Decimal Inch):
0.5039"
Width (mm):
12.80mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1417"
Thickness (mm):
3.60mm
interval quantity:
10
Ships:
From California in 1-2 Days
