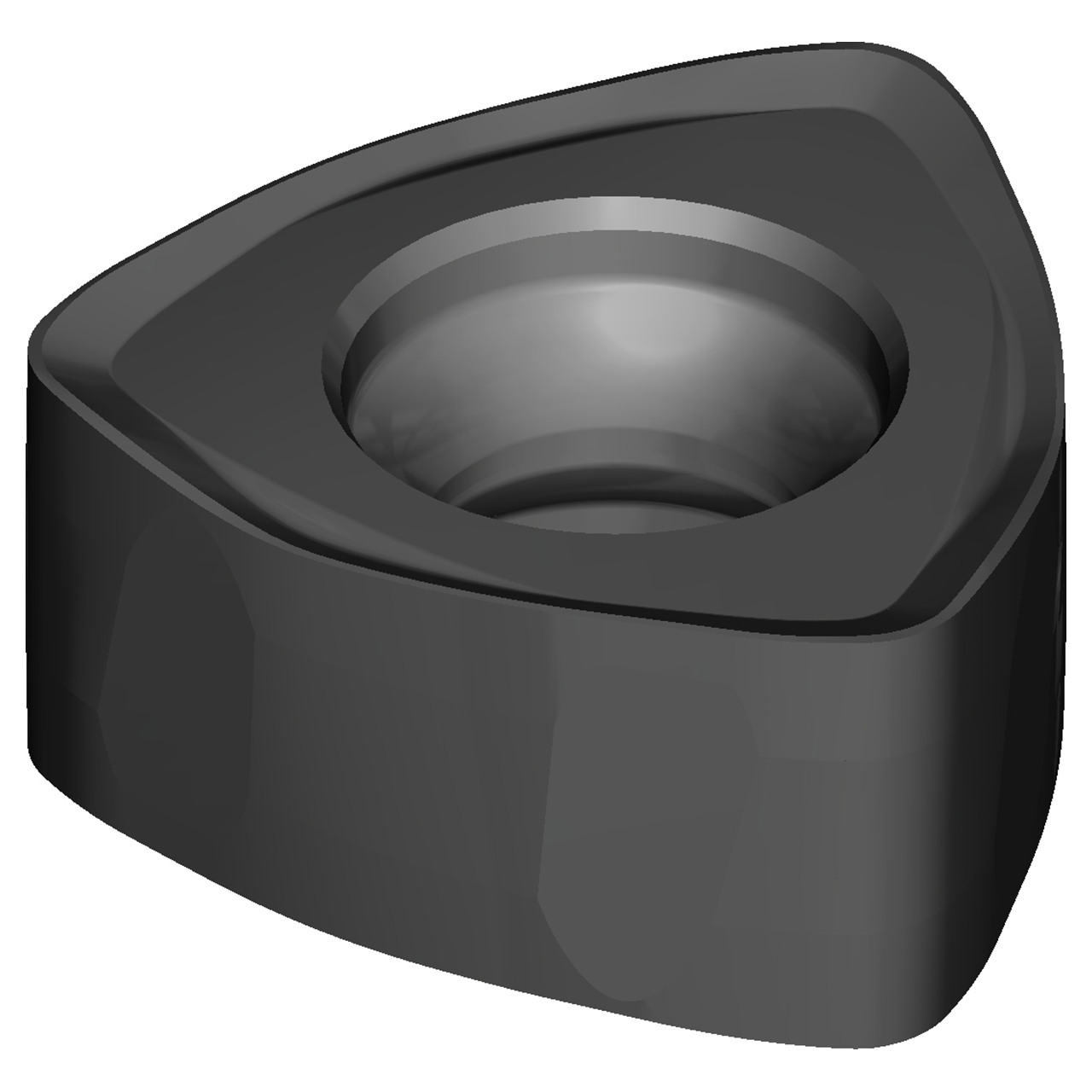

Sumitomo 14T7BBP | WNMU0807ZNER-G-ACP2000 3.00mm Maximum Drill Depth x 1.60mm Radius x 7.00mm Thickness Carbide ACP2000 Coated DMSW Milling Insert

Sumitomo 14T7BBP | WNMU0807ZNER-G-ACP2000 3.00mm Maximum Drill Depth x 1.60mm Radius x 7.00mm Thickness Carbide ACP2000 Coated DMSW Milling Insert

SKU: 23168609 Weight: 0.50 LBS Minimum Purchase: 10 unit
UPC:
$49.75 $35.54
(You save $14.21)
Total Price: $35.54
Shipping: Calculated at Checkout

About This Item


Product Specifications
EDP Number14T7BBP
Product Code-ANSIWNMU0807ZNER-G-ACP2000
Manufacturer Grade IdentificationACP2000
SeriesDMSW
Maximum Depth of Cut (mm)3.00mm
Nose Radius (Decimal Inch)0.0630"
Nose Radius (mm)1.60mm
Insert Thickness (Decimal Inch)0.2756"
Insert Thickness (mm)7.00mm
CoatingACP2000
Coating ProcessCVD
Insert StyleWNMU
Insert SideDouble
Insert Size0807
Chip BreakerG
Tolerance ClassM
Insert HandR
Insert MaterialCarbide
