| EDP Number | 14T9AFP |

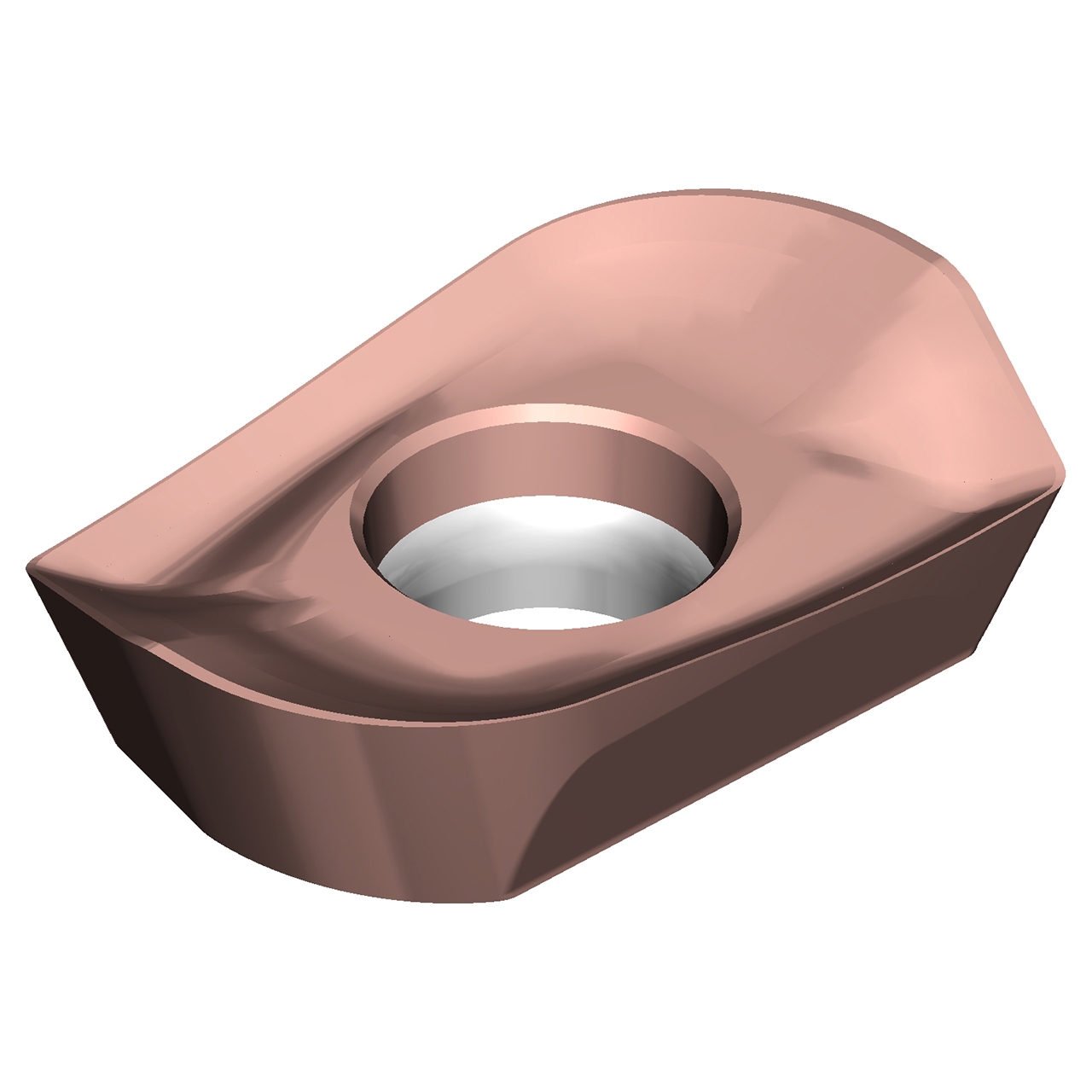

| Product Code-ANSI | AOMT11T330PEER-G-ACP3000 |
| Manufacturer Grade Identification | ACP3000 |
| Series | WEZ |
| Maximum Depth of Cut (mm) | 9.50mm |
| Cutting Edge Length (Decimal Length) | 0.4803" |
| Cutting Edge Length (mm) | 12.20mm |
| Nose Radius (Decimal Inch) | 0.1181" |
| Nose Radius (mm) | 3.00mm |
| Insert Thickness (Decimal Inch) | 0.1339" |
| Insert Thickness (mm) | 3.40mm |
| Coating | ACP3000 |
| Coating Process | PVD |
| Insert Style | AOMT |
| Insert Side | Single |
| Insert Size | 11T3 |
| Chip Breaker | G |
| Tolerance Class | M |
| Insert Hand | R |
| Insert Material | Carbide |
